975nm 976nm 980nm 200W High Power Fiber Coupled Diode Laser

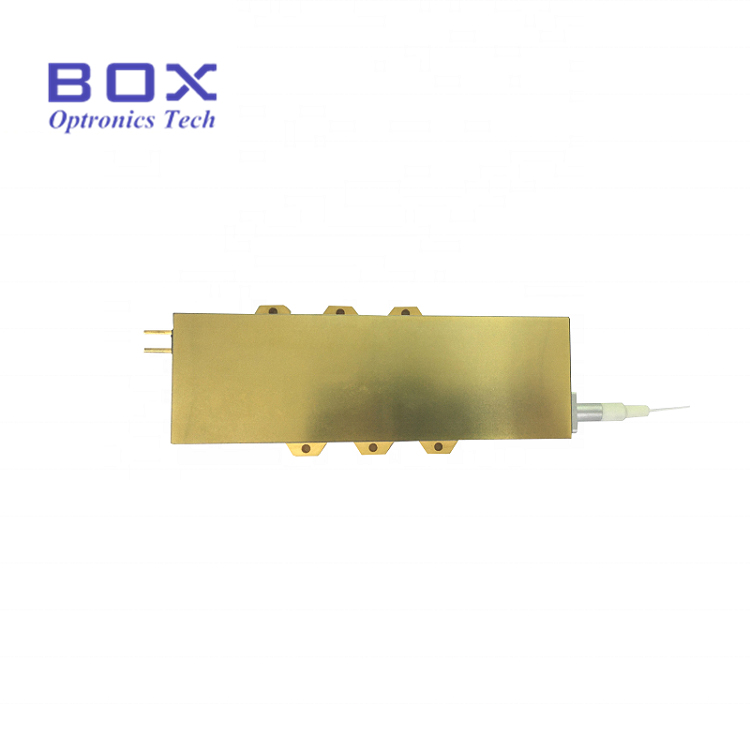

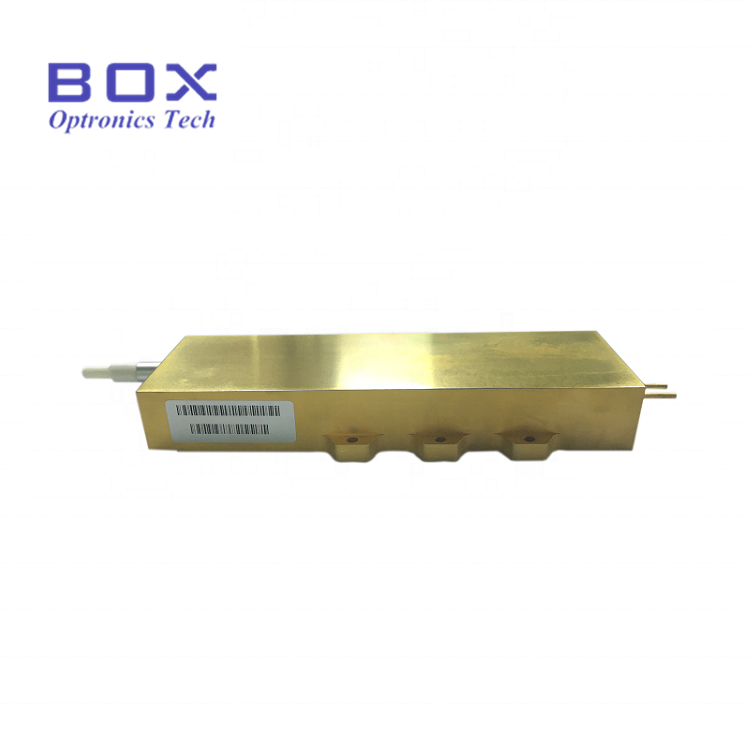

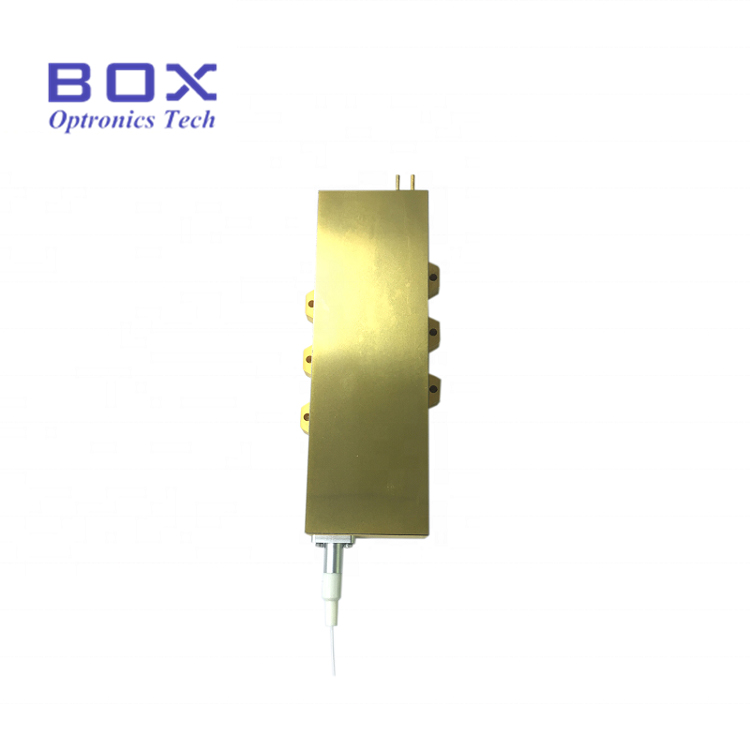

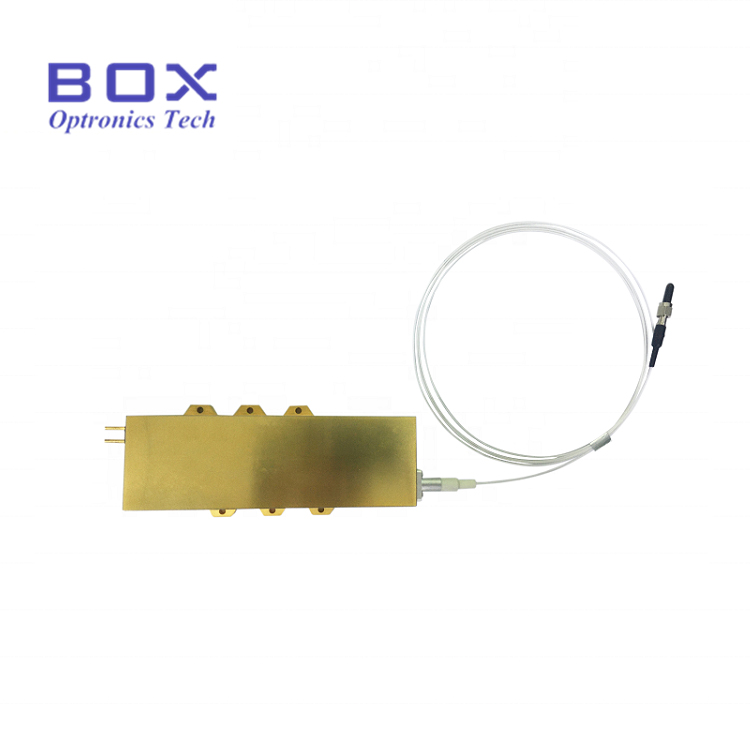

The 975nm 976nm 980nm 200W High Power Fiber Coupled Diode Laser include a high output of 200 watts, center wavelength of 976nm, They also have a 200µm fiber core diameter. These modules offer high efficiency, stability, and superior beam quality. Production is achieved by transforming the asymmetric radiation from the laser diode chip into an output fiber with small core diameter by using special micro optics. Inspecting and burn-in procedures in every aspect come to a result to guarantee each product with the reliability, stability and long lifetime. Material processing and fiber laser pumping are the expected applications for these lasers.

Send Inquiry

Product Description

1. Summary of 975nm 976nm 980nm 200W High Power Fiber Coupled Diode Laser

The 975nm 976nm 980nm 200W High Power Fiber Coupled Diode Laser include a high output of 200 watts, center wavelength of 976nm, They also have a 200µm fiber core diameter. These modules offer high efficiency, stability, and superior beam quality. Production is achieved by transforming the asymmetric radiation from the laser diode chip into an output fiber with small core diameter by using special micro optics. Inspecting and burn-in procedures in every aspect come to a result to guarantee each product with the reliability, stability and long lifetime. Material processing and fiber laser pumping are the expected applications for these lasers.

2. Introduction of 975nm 976nm 980nm 200W High Power Fiber Coupled Diode Laser

The 975nm 976nm 980nm 200W High Power Fiber Coupled Diode Laser include a high output of 200 watts, center wavelength of 976nm, They also have a 200µm fiber core diameter. These modules offer high efficiency, stability, and superior beam quality. Production is achieved by transforming the asymmetric radiation from the laser diode chip into an output fiber with small core diameter by using special micro optics. Inspecting and burn-in procedures in every aspect come to a result to guarantee each product with the reliability, stability and long lifetime. Material processing and fiber laser pumping are the expected applications for these lasers.

3. Features of 975nm 976nm 980nm 200W High Power Fiber Coupled Diode Laser

976nm Wavelength 200 Watt CW Output Power;

200 Watt CW Output power;

200µm Fiber core diameter;

0.22NA.

4. Application of 975nm 976nm 980nm 200W High Power Fiber Coupled Diode Laser

Medical care;

Pump source;

Illumination;

Material processing.

5. Electro-Optical Characteristics(T=25℃) of 975nm 976nm 980nm 200W High Power Fiber Coupled Diode Laser

Parameter Symbol Min. Typ. Max. Unit
Operating output power Pout - 200.0 - W
Range of available wavelength λ 971 976 981 nm
Spectral width @ FWHM Δλ - 4.5 - nm
Threshold current Ith - 1.0 - A
Operating current at Pout IOP - 16.5 18.5 A
Operating voltage at Pout VOP - 24.5 - V
Power conversion efficiency - - 45 - %
Wavelength temperature coefficient Δλ/ΔT - 0.3 - nm/℃
Slope efficiency η - 13.0 - W/A
Fiber bend radius r 37.5 - - mm
Fiber core diameter DCOR - 135 - µm
1064ISO - - 30 - dB
Fiber numerical aperture NA - 0.22 - -
Beam numerical aperture(95% power) Lf - 0.18 - NA
Fiber length Lf   1.5 - m
Connector type - Null, SMA905 -

6. Package drawing&PIN-OUT Definition(Unit:mm) of 975nm 976nm 980nm 200W High Power Fiber Coupled Diode Laser

7. Deliver,Shipping And Serving of 975nm 976nm 980nm 200W High Power Fiber Coupled Diode Laser

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

8. FAQ

Q: What is the wavelength you need?

A: We have 793nm 808nm 915nm 975nm laser diode.

Q: What is the requirement for the output power?

A: Box optronics can customize according to your requirements.
