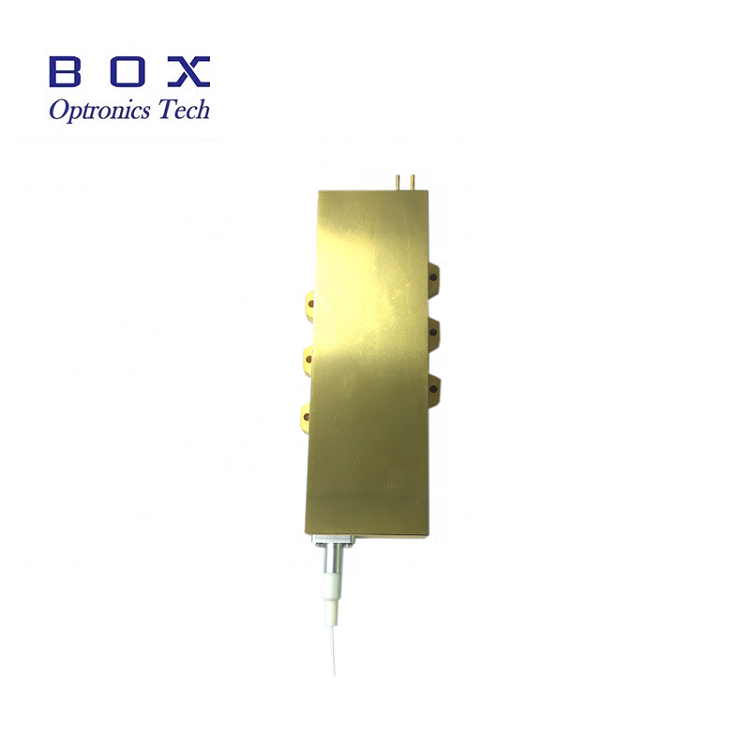

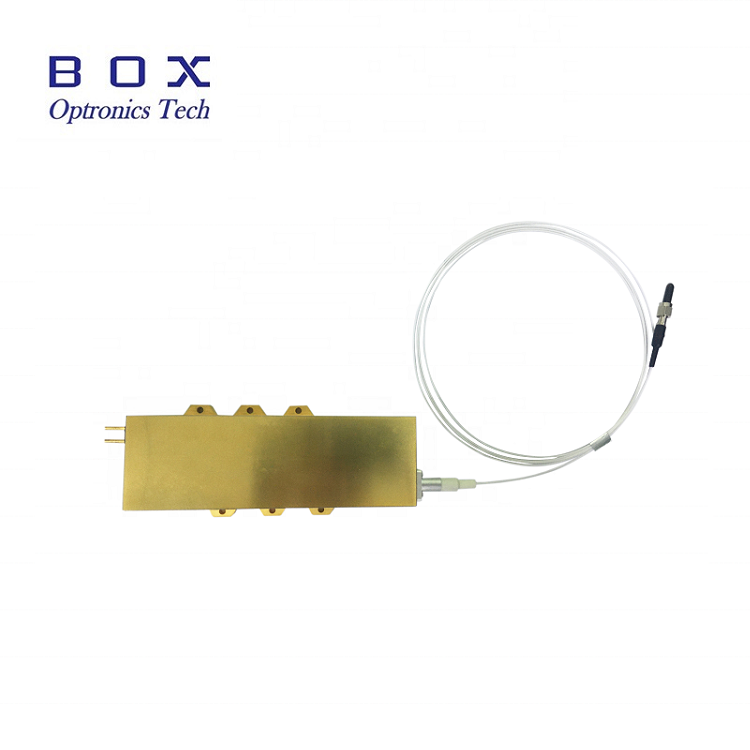

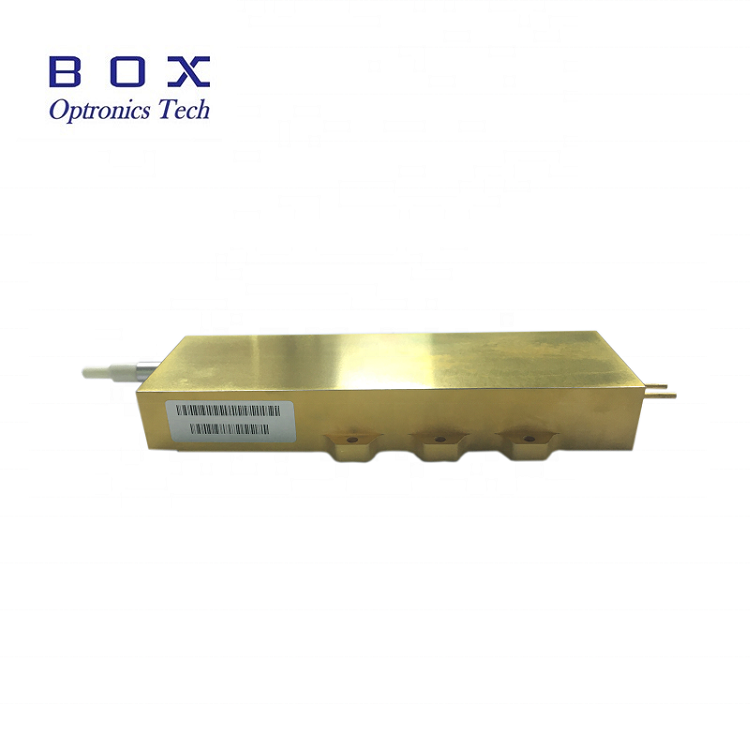

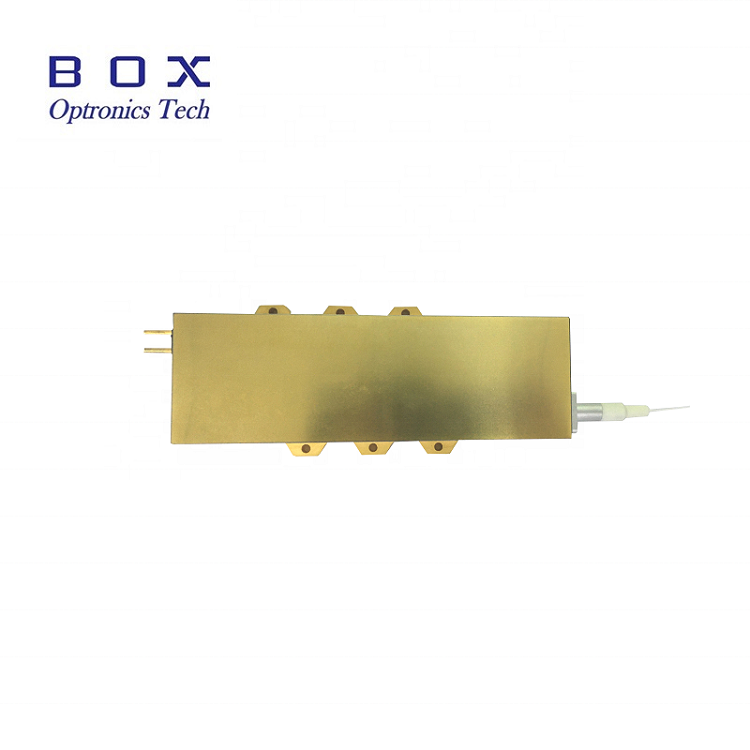

915nm 320W High Power Fiber Coupled Diode Laser

The 915nm 320W High Power Fiber Coupled Diode Laser has been developed for pumping, medical or materials processing applications. This diode laser has been designed to delivery very high output power for the fiber laser market and for direct system manufacturers to with a more compact pump configuration.Various output powers are available.

Send Inquiry

Product Description

1. Summary of 915nm 320W High Power Fiber Coupled Diode Laser

The 915nm 320W High Power Fiber Coupled Diode Laser has been developed for pumping, medical or materials processing applications. This diode laser has been designed to delivery very high output power for the fiber laser market and for direct system manufacturers to with a more compact pump configuration.Various output powers are available.

2. Introduction of 915nm 320W High Power Fiber Coupled Diode Laser

The 915nm 320W High Power Fiber Coupled Diode Laser has been developed for pumping, medical or materials processing applications. This diode laser has been designed to delivery very high output power for the fiber laser market and for direct system manufacturers to with a more compact pump configuration.Various output powers are available.

3. Features of 915nm 320W High Power Fiber Coupled Diode Laser

Output Power: 320 Watts;

Center Wavelength: 915nm (+/- 10nm);

Spectral Width (FWHM): 4.5nm;

Fiber type: 200um;

Numerical Aperture: 0.22NA.

4. Application of 915nm 320W High Power Fiber Coupled Diode Laser

Medical care;

Pump source;

Illumination;

Material processing.

5. Electro-Optical Characteristics(T=25℃) of 915nm 320W High Power Fiber Coupled Diode Laser

Parameter Symbol Min. Typ. Max. Unit
Operating output power Pout - 320.0 - W
Range of available wavelength λ 905 915 925 nm
Spectral width @ FWHM Δλ - 4.5 - nm
Threshold current Ith - 1.0 - A
Operating current at Pout IOP - 21.0 22.0 A
Operating voltage at Pout VOP - 31.5 - V
Power conversion efficiency - - 48 - %
Wavelength temperature coefficient Δλ/ΔT - 0.3 - nm/℃
Slope efficiency η - 17.0 - W/A
Fiber bend radius r 37.5 - - mm
Fiber core diameter DCOR - 200/220 - µm/µm
1064ISO - - 30 - dB
Fiber numerical aperture NA - 0.22 - -
Beam numerical aperture(95% power) Lf - 0.18 - NA
Fiber length Lf - 1.5 - m
Connector type - Null or SMA905 -

6. Package drawing&PIN-OUT Definition(Unit:mm) of 915nm 320W High Power Fiber Coupled Diode Laser

7. Deliver,Shipping And Serving of 915nm 320W High Power Fiber Coupled Diode Laser

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

8. FAQ

Q: What is the wavelength you need?

A: We have 793nm 808nm 915nm 975nm laser diode.

Q: What is the requirement for the output power?

A: Box optronics can customize according to your requirements.
