915nm 200W Laser Diode High Power Fiber Coupled Module

The 915nm 200W Laser Diode High Power Fiber Coupled Module offer up to 200 Watts of CW optical output power into a 106 or 200 micrometer fiber pigtail. These devices are based on a high reliability single emitter design. Their single emitter based design delivers very good heat dissipation through the package which leads to excellent thermal performance over a long lifetime. Advanced processes for coupling efficiency allows these modules to deliver up to 95% of their output power within 0.22 NA. They ship with 1.5 meter (typ.) unterminated fiber pigtail.

Send Inquiry

Product Description

1. Summary of 915nm 200W Laser Diode High Power Fiber Coupled Module

The 915nm 200W Laser Diode High Power Fiber Coupled Module offer up to 200 Watts of CW optical output power into a 106 or 200 micrometer fiber pigtail. These devices are based on a high reliability single emitter design. Their single emitter based design delivers very good heat dissipation through the package which leads to excellent thermal performance over a long lifetime. Advanced processes for coupling efficiency allows these modules to deliver up to 95% of their output power within 0.22 NA. They ship with 1.5 meter (typ.) unterminated fiber pigtail.

2. Introduction of 915nm 200W Laser Diode High Power Fiber Coupled Module

The 915nm 200W Laser Diode High Power Fiber Coupled Module offer up to 200 Watts of CW optical output power into a 106 or 200 micrometer fiber pigtail. These devices are based on a high reliability single emitter design. Their single emitter based design delivers very good heat dissipation through the package which leads to excellent thermal performance over a long lifetime. Advanced processes for coupling efficiency allows these modules to deliver up to 95% of their output power within 0.22 NA. They ship with 1.5 meter (typ.) unterminated fiber pigtail.

3. Features of 915nm 200W Laser Diode High Power Fiber Coupled Module

Output Power: 200 Watts;

Center Wavelength: 915nm (+/- 10nm);

Spectral Width (FWHM): 4.5nm;

Fiber type: 106.5um or 200um;

Numerical Aperture: 0.22NA.

4. Application of 915nm 200W Laser Diode High Power Fiber Coupled Module

Medical care;

Pump source;

Illumination;

Material processing.

5. Electro-Optical Characteristics(T=25℃) of 915nm 200W Laser Diode High Power Fiber Coupled Module

Parameter Symbol Min. Typ. Max. Unit
Operating output power Pout 185.0 200.0 - W
Range of available wavelength λ 905 915 925 nm
Spectral width @ FWHM Δλ - 4.5 - nm
Threshold current Ith - 0.5 - A
Operating current at Pout IOP - 13.0 14.0 A
Operating voltage at Pout VOP - 32.5 - V
Power conversion efficiency - - 45 - %
Wavelength temperature coefficient Δλ/ΔT - 0.3 - nm/℃
Slope efficiency η - 16.0 - W/A
Fiber bend radius r 37.5 - - mm
Fiber core diameter DCOR - 106.5 - µm
1064ISO - - 30 - dB
Fiber numerical aperture NA - 0.22 - -
Beam numerical aperture(95% power) Lf - 0.18 - NA
Fiber length Lf - 1.5 - m
Connector type - Null, SMA905 -

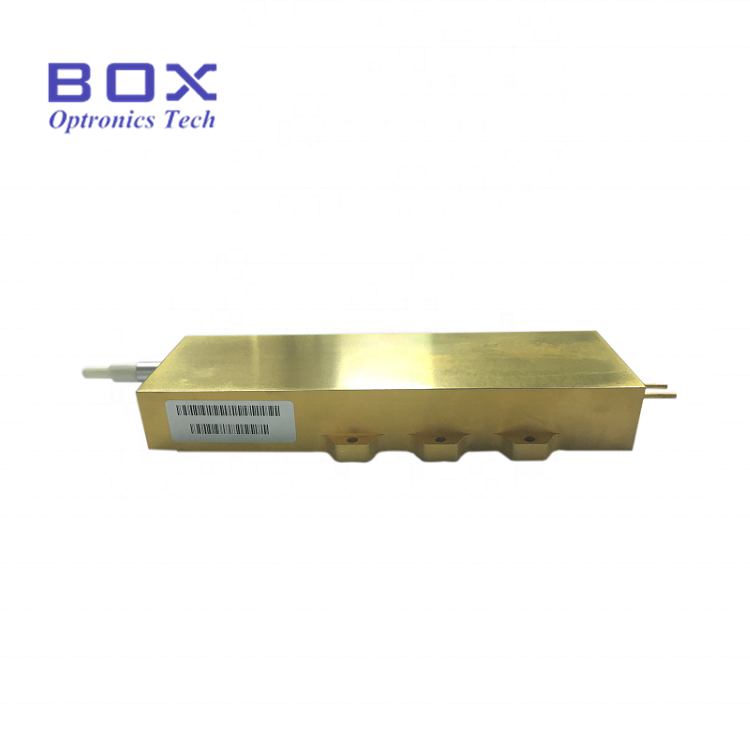

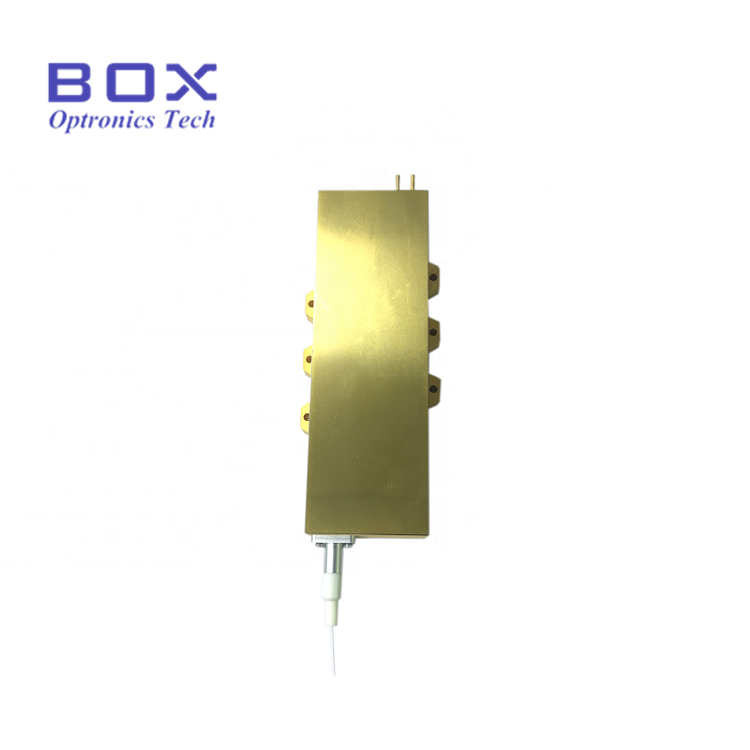

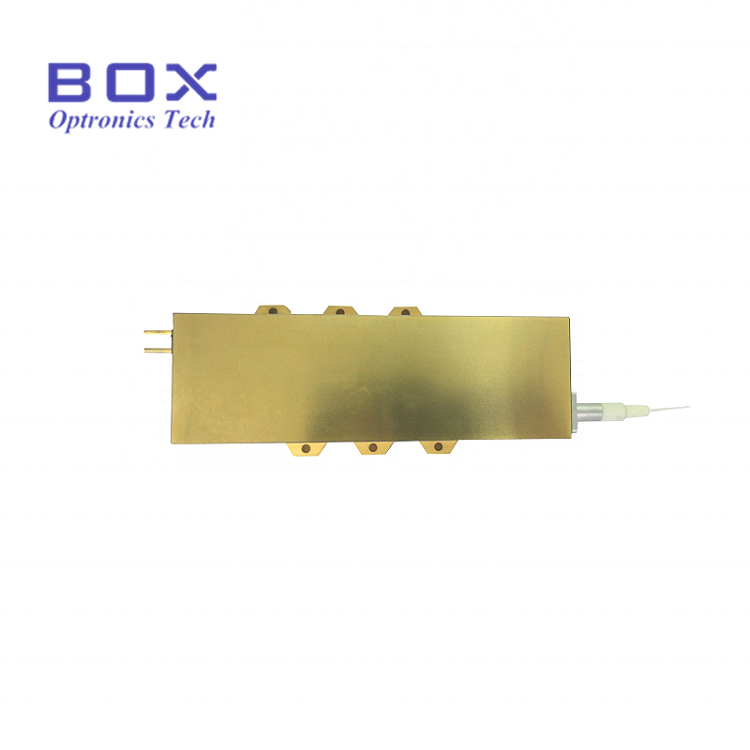

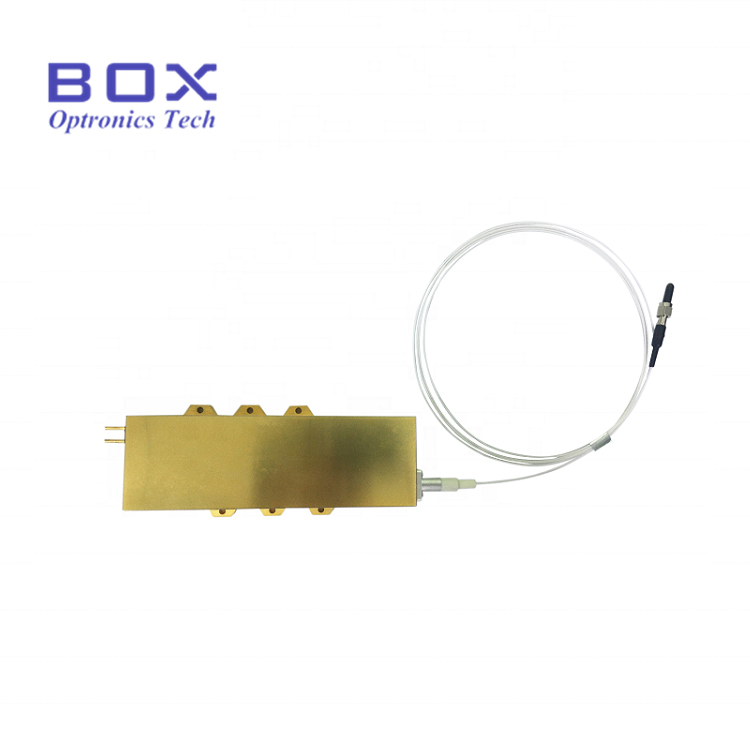

6. Product Details of 915nm 200W Laser Diode High Power Fiber Coupled Module

7. Deliver,Shipping And Serving of 915nm 200W Laser Diode High Power Fiber Coupled Module

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

8. FAQ

Q: What is the wavelength you need?

A: We have 793nm 808nm 915nm 975nm laser diode.

Q: What is the requirement for the output power?

A: Box optronics can customize according to your requirements.
