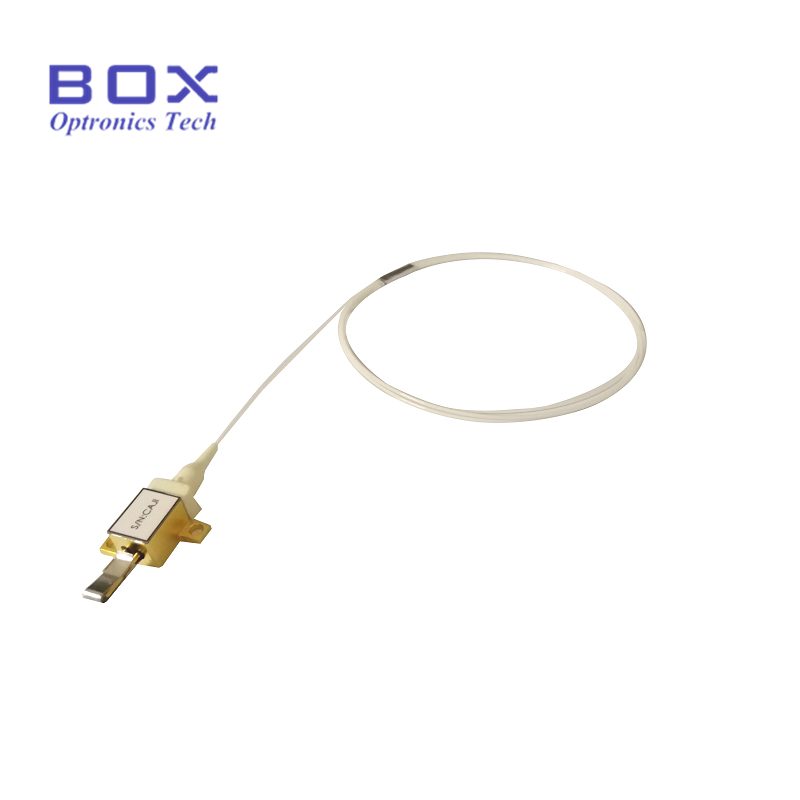

915nm 10W Fiber Coupled Diode Laser

The 915nm 10W Fiber Coupled Diode Laser offer up to 10 watts of CW output power from a 105 µm fiber. They are Fabry-Perot single emitter devices. The model referenced in this product listing has a numerical aperture of 0.22. The fiber is un-terminated for direct coupling to your sample or fiber cladding layer. The 915nm 10W series multimode pump modules offer high brightness, a small footprint and simplified thermal management by distributing the laser diodes and dissipating the heat source.

Send Inquiry

Product Description

1. Summary of 915nm 10W Fiber Coupled Diode Laser

The 915nm 10W Fiber Coupled Diode Laser offer up to 10 watts of CW output power from a 105 µm fiber. They are Fabry-Perot single emitter devices. The model referenced in this product listing has a numerical aperture of 0.22. The fiber is un-terminated for direct coupling to your sample or fiber cladding layer. The 915nm 10W series multimode pump modules offer high brightness, a small footprint and simplified thermal management by distributing the laser diodes and dissipating the heat source.

2. Introduction of 915nm 10W Fiber Coupled Diode Laser

The 915nm 10W Fiber Coupled Diode Laser offer up to 10 watts of CW output power from a 105 µm fiber. They are Fabry-Perot single emitter devices. The model referenced in this product listing has a numerical aperture of 0.22. The fiber is un-terminated for direct coupling to your sample or fiber cladding layer. The 915nm 10W series multimode pump modules offer high brightness, a small footprint and simplified thermal management by distributing the laser diodes and dissipating the heat source.

3. Features of 915nm 10W Fiber Coupled Diode Laser

915nm Single emitting laser;

10W Output power;

105/125μm 0.22NA Fiber;

High brightness;

RoHS Compliance.

4. Application of 915nm 10W Fiber Coupled Diode Laser

Medical care;

Pump source;

Material processing.

5. Electro-Optical Characteristics(T=25℃) of 915nm 10W Fiber Coupled Diode Laser

Parameter Symbol Min. Typ. Max. Unit
Operating output power Pout 10.0 - - W
Range of available wavelength λ 905 915 925 nm
Spectral width @ FWHM Δλ - 3.5 7.0 nm
Threshold current Ith - 0.55 0.9 A
Operating current at Pout IOP - 11.0 12.5 A
Operating voltage at Pout VOP - 1.75 2.2 V
Power conversion efficiency - - 48 - %
Wavelength temperature coefficient Δλ/ΔT - 0.3 - nm/℃
Slope efficiency η - 0.9 - W/A
Fiber bend radius r 37.5 - - mm
Fiber core/cladding diameter DCOR - 105/125 - µm/µm
Fiber buffer diameter DBUF - 250 - µm
Fiber numerical aperture NA - 0.22 - -
Fiber length Lf - 1.2 - m
Connector type - Null,FC/PC, SMA905 -

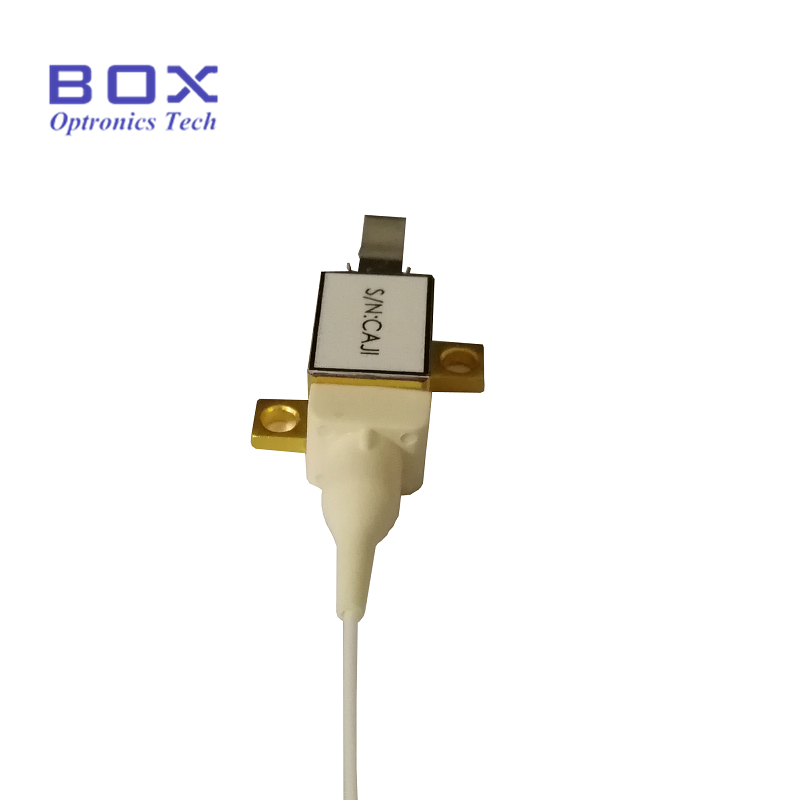

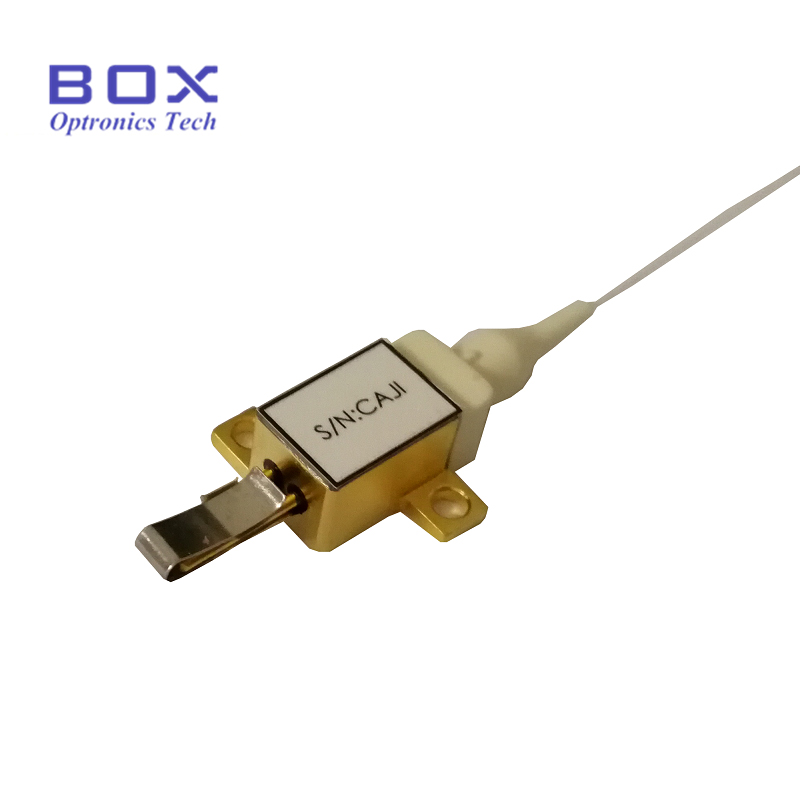

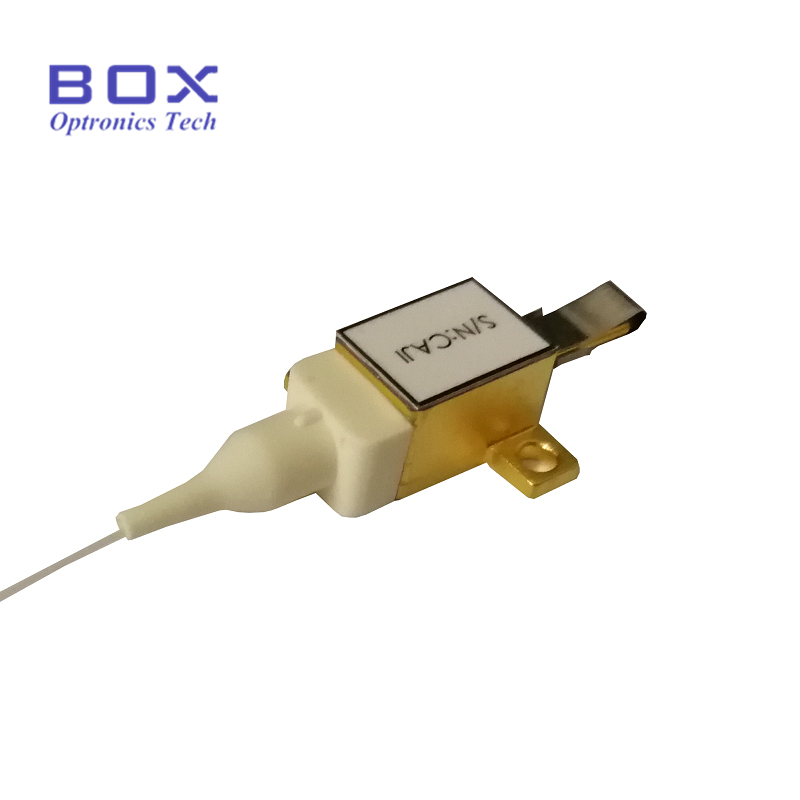

6. Product Details of 915nm 10W Fiber Coupled Diode Laser

  • PIN DESIGNATIONS
    1 LD+
    2 LD-

7. Deliver,Shipping And Serving of 915nm 10W Fiber Coupled Diode Laser

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

8. FAQ

Q: What is the wavelength you need?

A: We have 793nm 808nm 915nm 975nm laser diode.

Q: What is the requirement for the output power?

A: Box optronics can customize according to your requirements.
