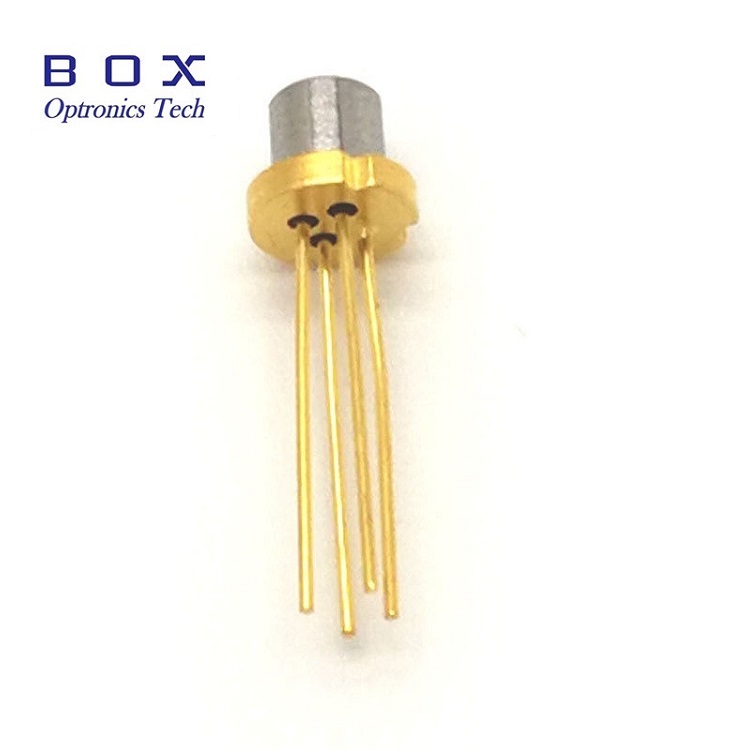

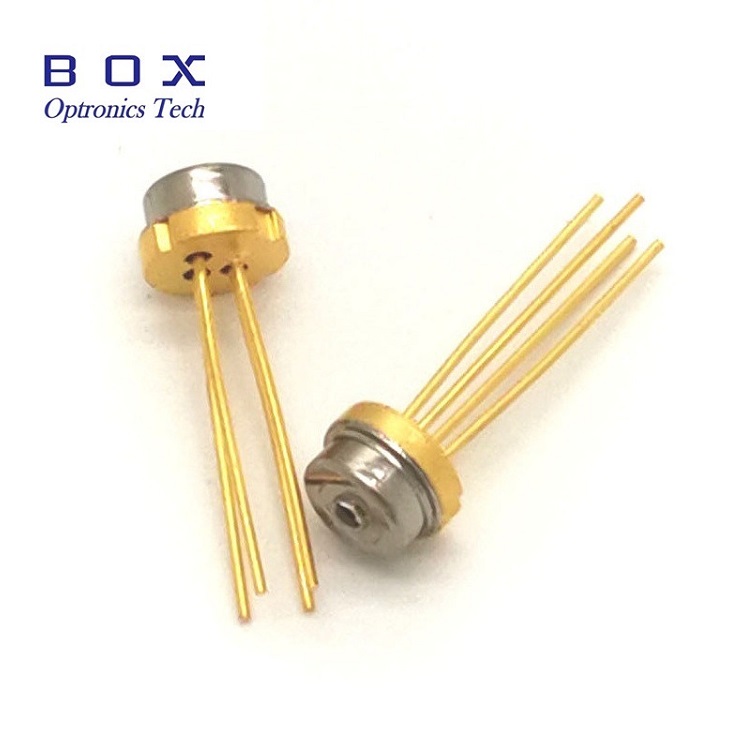

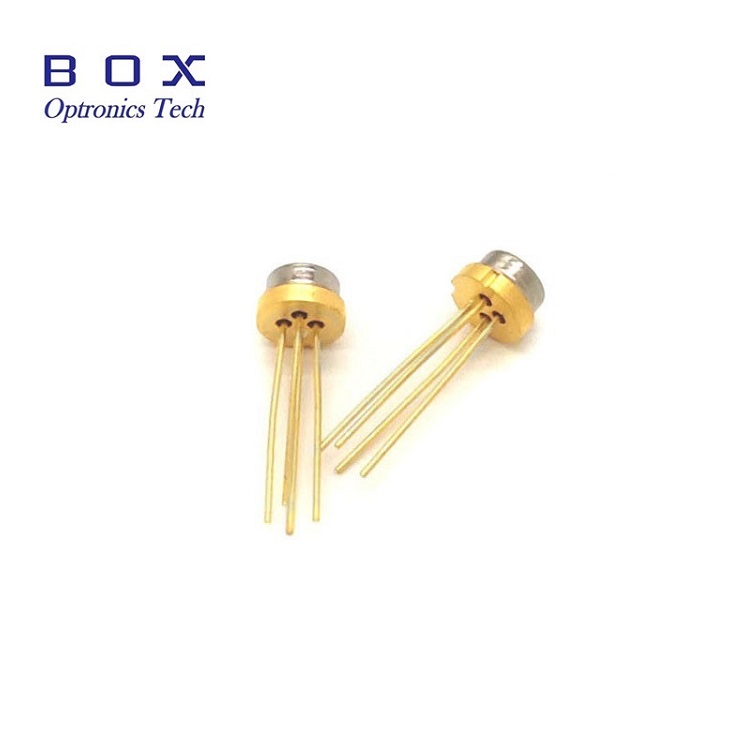

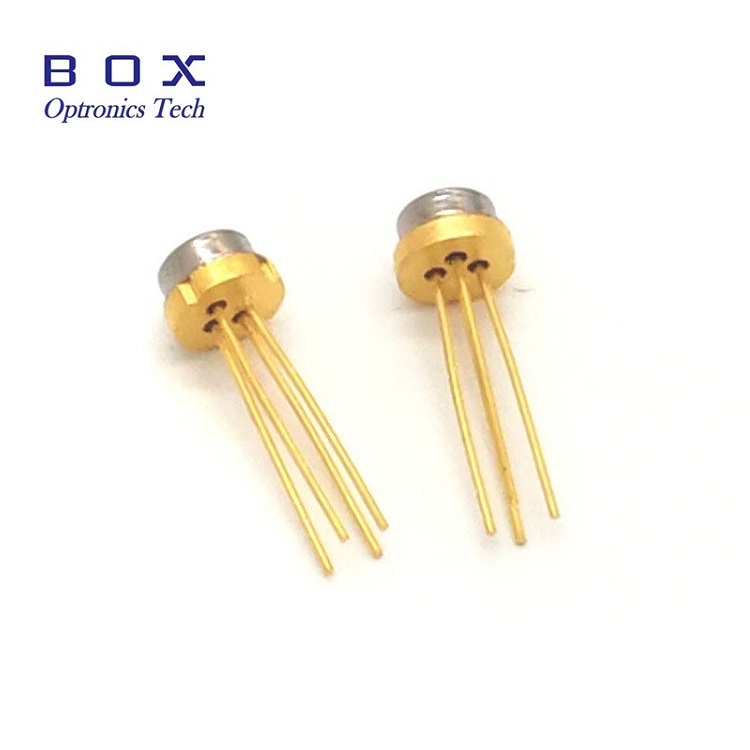

850nm 10mW TO CAN VCSEL Laser Diode

The 850nm 10mW TO CAN VCSEL Laser Diode is a standard Vertical Cavity Surface Emitting Lasers (VCSELs) in ready to use fiber coupled packages. it is in a small package TO56, Modulation and width >2GHz. We offer the 940nm 10mW VCSEL Laser Diode with multi-mode optical fiber 50um or 62.5um core optical fiber.

Send Inquiry

Product Description

2. Introduction of 850nm 10mW TO CAN VCSEL Laser Diode

The 850nm 10mW VCSEL Laser Diode is a standard Vertical Cavity Surface Emitting Lasers (VCSELs) in ready to use fiber coupled packages. it is in a small package TO56, Modulation and width >2GHz. We offer the 850nm 10mW VCSEL Laser Diode with multi-mode optical fiber 50um or 62.5um core optical fiber.

3. Features of 850nm 10mW TO CAN VCSEL Laser Diode

850nm single longitudinal mode;

Output power 10mW;

Small emission area;

Modulation and width >2GHz.

4. Application of 850nm 10mW TO CAN VCSEL Laser Diode

Vehicle applications;

IR indicator;

Range finder sensors.

5. Electro-Optical Characteristics(T=25℃) of 940nm 10mW TO CAN VCSEL Laser Diode

Parameter Symbol Condition Min. Typ. Max. Unit
Center wavelength λC IF = 11mA 840 850 860 nm
Optical output power Po IF = 11mA - 10 - mW
Threshold current Ith IF = 11mA - 1.1 - mA
Slope efficiency - - - 1.01 - W/A
Power conversion efficiency PCE IF = 11mA - 38 - %
Laser forward voltage VF IF = 11mA - 2.5 - V
Series resistance Rs IF = 11mA - 60 - Ω
Beam divergence (1/e^2) θ,IF = 11mA - 20 - Deg.
FWHM - 16 -
Wavelength shift - IF = 11mA - - 0.07 nm/℃

6. PIV Graph and Wavelength of 850nm 10mW TO CAN VCSEL Laser Diode

7. Package drawing&PIN-OUT Definition(Unit:mm) of 850nm 10mW TO CAN VCSEL Laser Diode

8. Deliver,Shipping And Serving of 850nm 10mW TO CAN VCSEL Laser Diode

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

9. FAQ

Q: What is the wavelength you need?

A: We have 1270nm~1610nm laser diode.

Q: What is the requirement for the output power?

A: Box optronics can customize according to your requirements.
