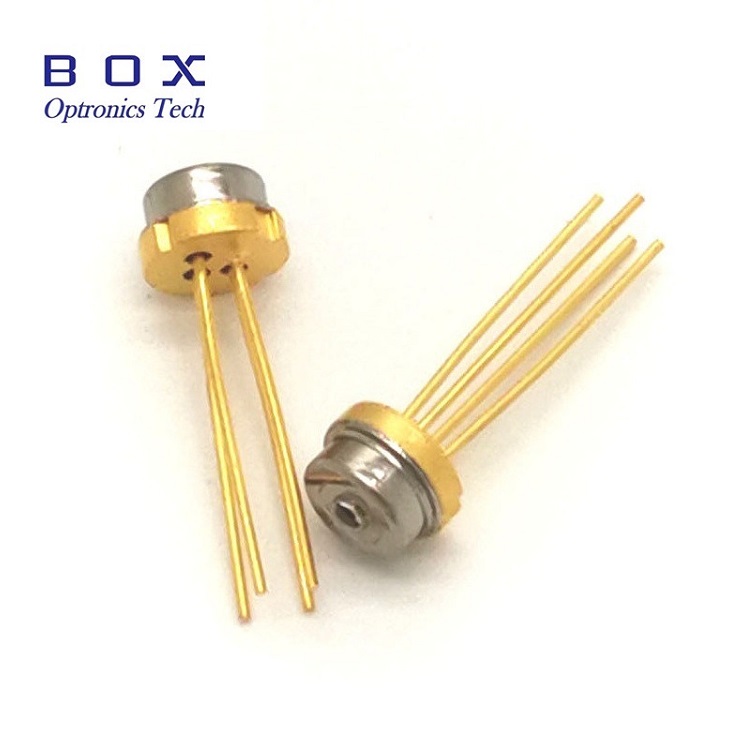

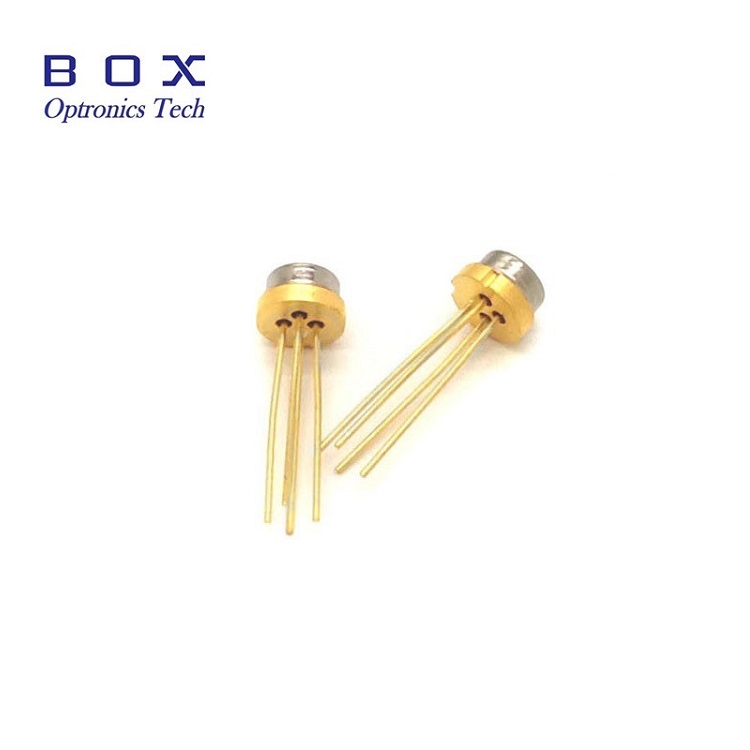

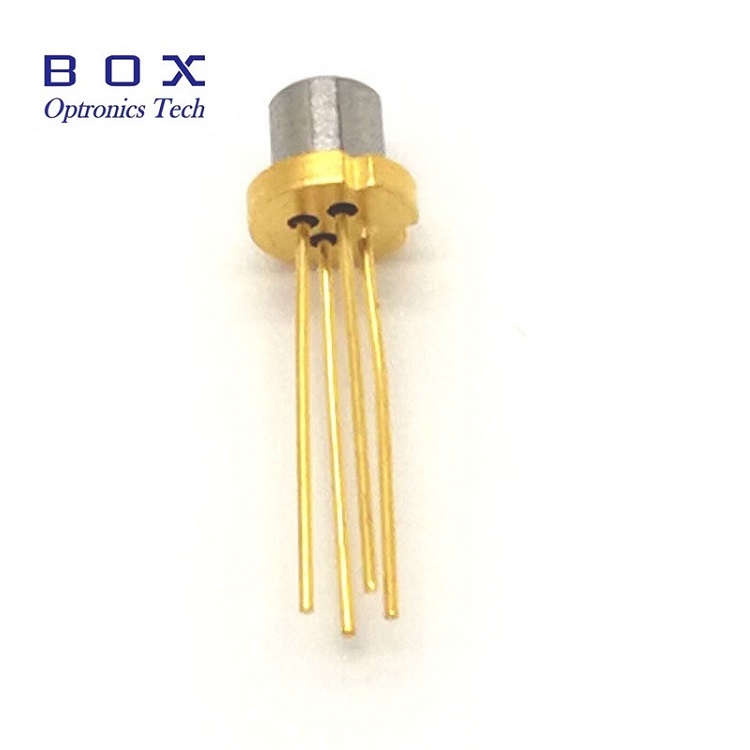

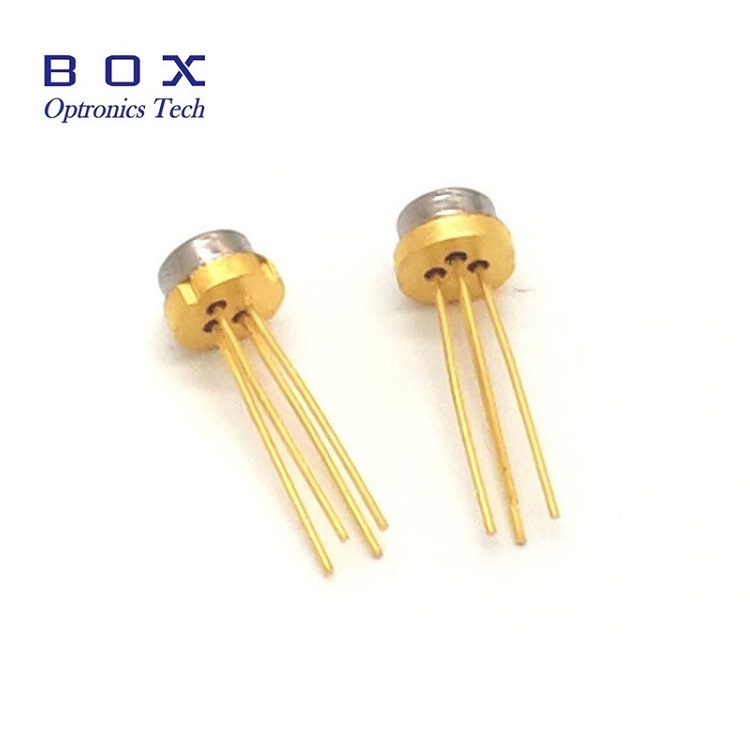

1270nm 5mW TO-CAN DFB Laser Diode

This 1270nm 5mW TO-CAN DFB Laser Diode is a product operable over a broad temperature range with a low temperature-wavelength coefficient. It is well suited for applications such as communications research, interferometry, and optical reflectometry for distance measurement in fiber or free space. Each device undergoes testing and burn-in. This laser comes packaged in a 5.6 mm TO Can. It contains an integrated aspheric focusing lens in the cap, allowing the focus spot and numerical aperture (NA) to be matched to SMF-28e+ fiber.

Send Inquiry

Product Description

2. Introduction of 1270nm 5mW TO-CAN DFB Laser Diode

This 1270nm 5mW TO-CAN DFB Laser Diode is a product operable over a broad temperature range with a low temperature-wavelength coefficient. It is well suited for applications such as communications research, interferometry, and optical reflectometry for distance measurement in fiber or free space. Each device undergoes testing and burn-in. This laser comes packaged in a 5.6 mm TO Can. It contains an integrated aspheric focusing lens in the cap, allowing the focus spot and numerical aperture (NA) to be matched to SMF-28e+ fiber.

3. Features of 1270nm 5mW TO-CAN DFB Laser Diode

Wavelength 1270nm;

Output power >5mW;

High power over wide temperature range;

High reliability, Long operation life.

4. Application of 1270nm 5mW TO-CAN DFB Laser Diode

CDMA/GSM transmission system;

WDM system;

Telecommunication;

Other analog transmission system.

5. Electro-Optical Characteristics(T=25℃) of 1270nm 5mW TO-CAN DFB Laser Diode

Parameter Symbol Condition Min. Typ. Max. Unit
Center wavelength λC CW, IF=ITH+20mA 1260 1270 1280 nm
Optical output power PF IF=ITH+20mA 5 6 - mW
Threshold current ITH CW   8 15 mA
CW, T=85℃   30 50
Operating voltage VF CW, IF=ITH+20mA - 1.2 1.5 V
Side-mode suppression ratio SMSR CW, IF=ITH+20mA 30 35 - dB
Rise time/Fall time TR/TF PO=PF, 50Ohm - 0.2 0.5 ns
Monitor current IM CW, IF=ITH+20mA 100 - 1000 uA
PD Capacitance C - - 10 20 PF
Dark current - VRD = 5V - - 100 nA
Spectral width(-3dB) Δλ   0.3 1 nm
Slope Efficiency SE - 0.26 0.3 - W/A
Focal length - - - 7.5 - mm


6. Package drawing&PIN-OUT Definition(Unit:mm) of 1270nm 5mW TO-CAN DFB Laser Diode





7. Deliver,Shipping And Serving of 1270nm 5mW TO-CAN DFB Laser Diode

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

8. FAQ

Q: What is the wavelength you need?

A: We have 1270nm~1610nm laser diode.

Q: What is the requirement for the output power?

A: Box optronics can customize according to your requirements.
