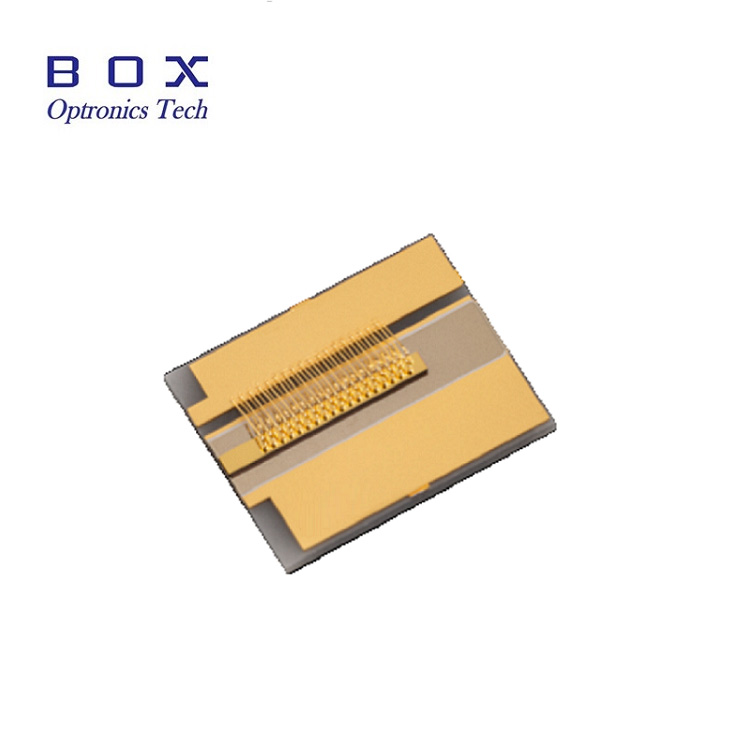

The 808nm 12W Chip on Carrier (COC) Laser Diodes are an excellent choice for customers seeking high power state-of-art performance in a low cost standard submount design. BoxOptronics provided across the wavelength range of 8XX to 9XX and come in a variety of configurations including single mode and multimode devices for both CW and pulsed operation. Applications for BoxOptronics’ COC devices include OEM medical, pump source, military targeting, OTDR, range finding and illumination. Custom wavelengths and configurations available upon request.
The 808nm 12W Chip on Carrier (COC) Laser Diodes are an excellent choice for customers seeking high power state-of-art performance in a low cost standard submount design. BoxOptronics provided across the wavelength range of 8XX to 9XX and come in a variety of configurations including single mode and multimode devices for both CW and pulsed operation. Applications for BoxOptronics’ COC devices include OEM medical, pump source, military targeting, OTDR, range finding and illumination. Custom wavelengths and configurations available upon request.
The 808nm 12W Chip on Carrier (COC) Laser Diodes are an excellent choice for customers seeking high power state-of-art performance in a low cost standard submount design. BoxOptronics provided across the wavelength range of 8XX to 9XX and come in a variety of configurations including single mode and multimode devices for both CW and pulsed operation. Applications for BoxOptronics’ COC devices include OEM medical, pump source, military targeting, OTDR, range finding and illumination. Custom wavelengths and configurations available upon request.
High conversion efficiency;
Working life > 20000h;
Low dark current, Low capacitance;
High reliability, Long operation life;
Customized products for customers.
Industry;
Pump;
Illumination;
Medical treatment.
| Parameter | Symbol | Min. | Typ. | Max. | Unit |
| Operation | |||||
| Center wavelength | λc | 803 | 806 | 809 | nm |
| Optical output power | Po | - | 12 | - | W |
| Operation mode | - | CW | - | ||
| Power modulation | - | - | 100 | - | % |
| Electro Optical Data | |||||
| Fast axis divergency (FWHM) | θ⊥ | - | 34 | - | deg |
| Slow axis divergency (FWHM) | θ‖ | - | 10 | - | deg |
| Spectral bandwidth (FWHM) | Δλ | - | 4 | - | nm |
| Pulse wavelength | λ | 800 | 803 | 806 | nm |
| Slope efficiency | η | 1.1 | 1.2 | - | W/A |
| Conversion efficiency | - | 50 | 55 | - | % |
| Threshold current | ITH | - | 1.8 | 2 | A |
| Operating current | IOP | - | 12 | 13 | A |
| Operating voltage | VOP | - | 1.8 | 2.0 | V |
| Temperature characteristics(dλ/dT) | - | - | 0.28 | - | nm/℃ |
| Polarization | - | - | TE | - | - |
| LD Operating temperature | - | 15 | 25 | 35 | ℃ |
| Geometrical | |||||
| Emitter width | W | - | 390 | - | µm |
| Emitter pitch | P | - | 680 | - | µm |
| Cavity length | L | 1990 | 2000 | 2010 | µm |
| Thickness | D | 110 | 130 | 150 | µm |

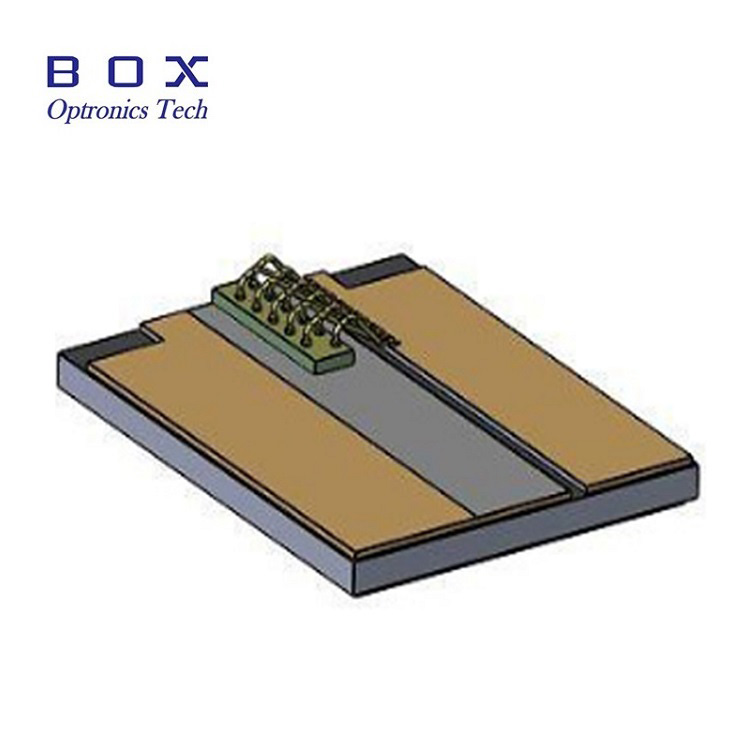

Note: the above figure is 4.5*4.5*0.5(mm) heat sink packaging. We can also provide 5.7*4.5*0.5(mm) heat sink packaging.
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: We have 808nm 830nm 880nm 915nm 975nm.
Q: What output power would you like?A: Box Optronics can customize according to your requirements.
