520nm FP Fiber Coupled Diode Green BTF Laser

520nm FP Fiber Coupled Diode Green BTF Laser adopts a 14 PIN diode structure, and can work stably in continuous wave(CW) mode. It’s a high-performance laser device with a 30mW output power. It’s suitable for optical instrument and light source.

Features of 520nm FP Fiber Coupled Diode Green BTF Laser

14PIN Butterfly package;

Built-in thermistor and TEC;

Fiber type can be SM-460HP or PM-S460-HP fiber;

Operating temperature: -10~+60℃.

Applications of 520nm FP Fiber Coupled Diode Green BTF Laser

Optical instrument;

Light source.

Electro-Optical Characteristics(T=25℃):

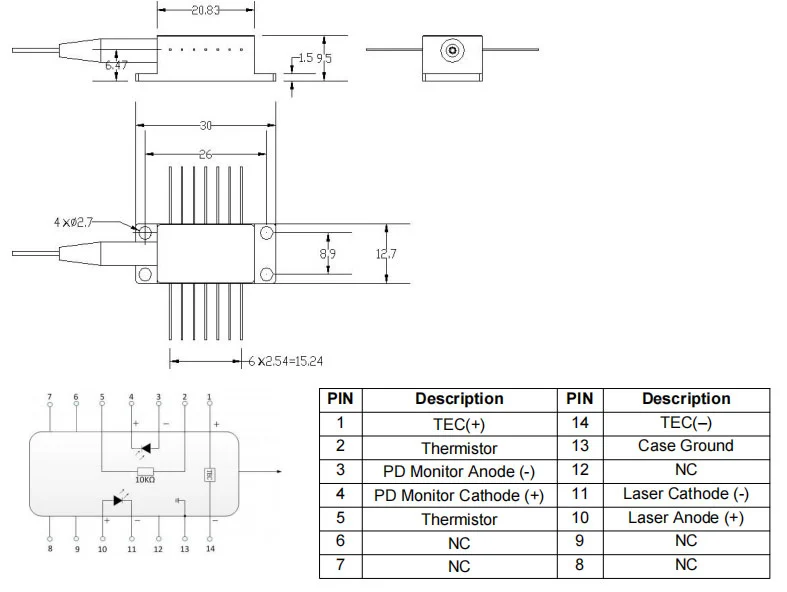

Package drawing&PIN-OUT Definition(Unit:mm)

Deliver,Shipping And Serving

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

FAQ

Q: What pigtail fibers are available?

A: SM-460HP or PM-S460-HP fiber.

Q: Do you have any other wavelength FP laser?

A: Yes, 488nm/ 520nm/ 532nm/ 660nm/ 850nm/ 1064nm... Please contact us for more details.
