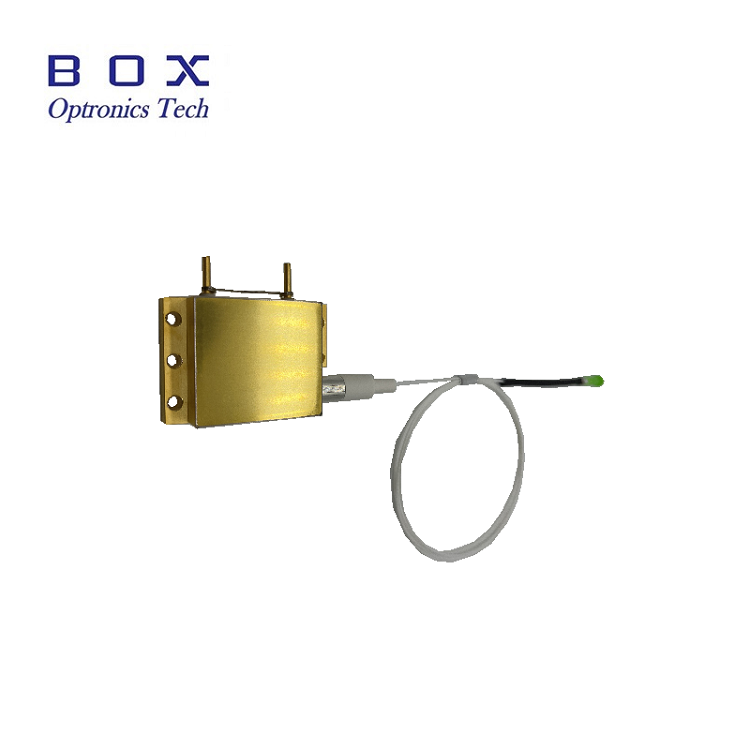

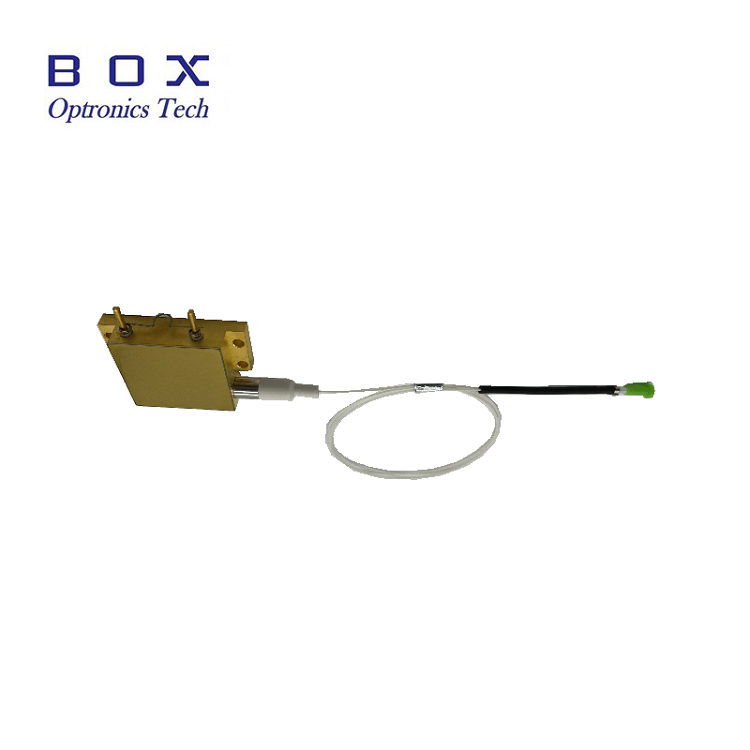

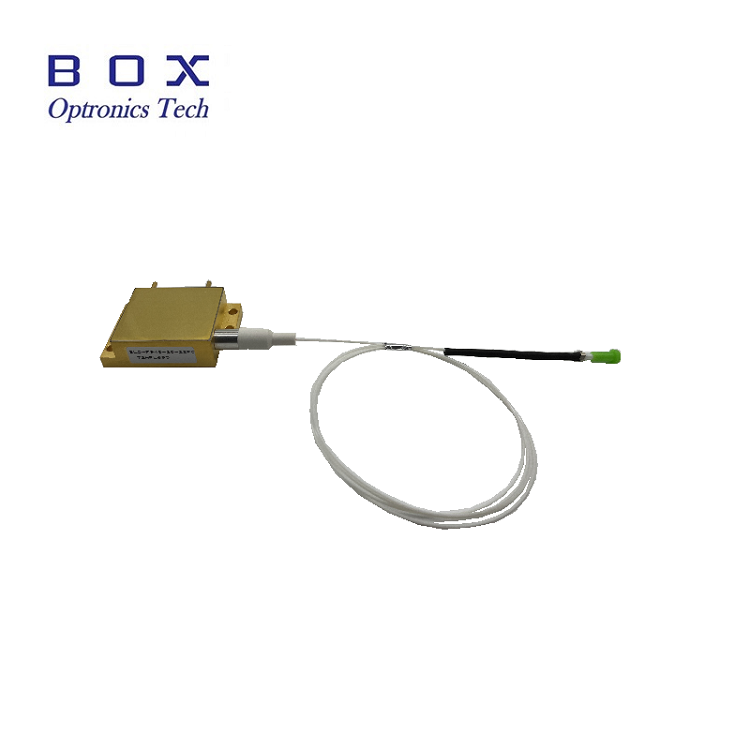

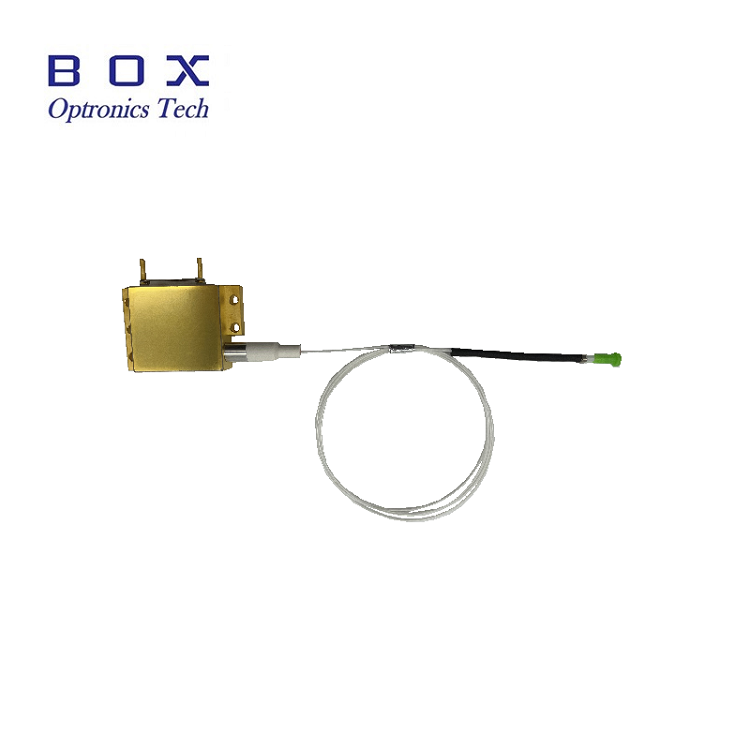

1064nm 25W 2-PIN Fiber Coupled Diode Laser
  • Air Pro1064nm 25W 2-PIN Fiber Coupled Diode Laser
  • Air Pro1064nm 25W 2-PIN Fiber Coupled Diode Laser
  • Air Pro1064nm 25W 2-PIN Fiber Coupled Diode Laser
  • Air Pro1064nm 25W 2-PIN Fiber Coupled Diode Laser

1064nm 25W 2-PIN Fiber Coupled Diode Laser

The 1064nm 25W 2-PIN Fiber Coupled Diode Laser have a high efficiency, stability and superior beam quality. The modules are achieved by transforming the asymmetric radiation from the laser diode chip into an output fiber with small core diameter by using special micro optics. Inpection and burn-in procedures guarantee reliability, stability and long lifetime of each modules.

Send Inquiry

Product Description

1. Summary of 1064nm 25W 2-PIN Fiber Coupled Diode Laser

The 1064nm 25W 2-PIN Fiber Coupled Diode Laser have a high efficiency, stability and superior beam quality. The modules are achieved by transforming the asymmetric radiation from the laser diode chip into an output fiber with small core diameter by using special micro optics. Inpection and burn-in procedures guarantee reliability, stability and long lifetime of each modules.

2. Introduction of 1064nm 25W 2-PIN Fiber Coupled Diode Laser

The 1064nm 25W 2-PIN Fiber Coupled Diode Laser have a high efficiency, stability and superior beam quality. The modules are achieved by transforming the asymmetric radiation from the laser diode chip into an output fiber with small core diameter by using special micro optics. Inpection and burn-in procedures guarantee reliability, stability and long lifetime of each modules.

3. Features of 1064nm 25W 2-PIN Fiber Coupled Diode Laser

Optical power from pigtail 25W;

Wavelength: 1064 nm (+/-10nm);

Spectral Width (FWHM): 5 nm;

Parallel weld 2-Pin sealed package;

Standard central wavelength 915nm/940nm/975nm/1064nm.

4. Application of 1064nm 25W 2-PIN Fiber Coupled Diode Laser

Medical care;

Illumination;

Solid State Pumping;

Scientific Research;

Material processing.

5. Electro-Optical Characteristics(T=25℃) of 1064nm 25W 2-PIN Fiber Coupled Diode Laser

Parameter Symbol Min. Typ. Max. Unit
Operating output power Pout - 25 - W
Range of available wavelength λ 1059 1064 1069 nm
Spectral width @ FWHM Δλ - 3.5 - nm
Threshold current Ith - 0.35 0.85 A
Operating current at Pout IOP - 11.0 12.0 A
Operating voltage at Pout VOP - 5.5 - V
Power conversion efficiency - - 45 - %
Wavelength temperature coefficient Δλ/ΔT - 0.3 - nm/℃
Slope efficiency η - 2.3 - W/A
Fiber bend radius r 37.5 - - mm
Fiber core/cladding diameter DCOR   105/125   µm/µm
Fiber buffer diameter DBUF - 250 - µm
Fiber numerical aperture NA - 0.22 - -
Beam numerical aperture(90% power) NA - 0.18 - -
Fiber length Lf 0.9 - - m
Connector type - Null or SMA905 -

6. Package drawing&PIN-OUT Definition(Unit:mm) of 1064nm 25W 2-PIN Fiber Coupled Diode Laser

  • PIN Description
    1 LD
    2 LD

7. Deliver,Shipping And Serving of 1064nm 25W 2-PIN Fiber Coupled Diode Laser

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

8. FAQ

Q: What is the wavelength you need?

A: We have 793nm 808nm 915nm 975nm laser diode.

Q: What is the requirement for the output power?

A: Box optronics can customize according to your requirements.
