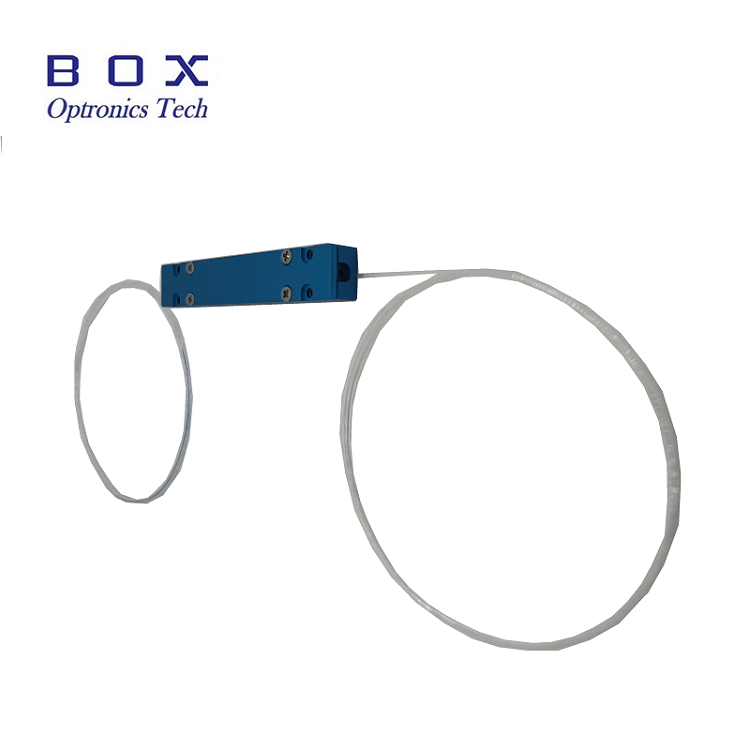

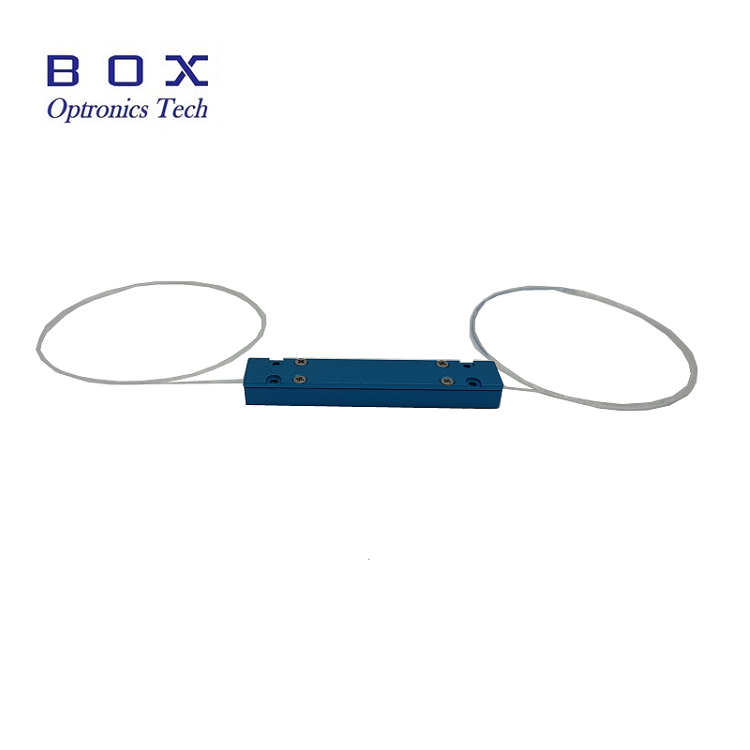

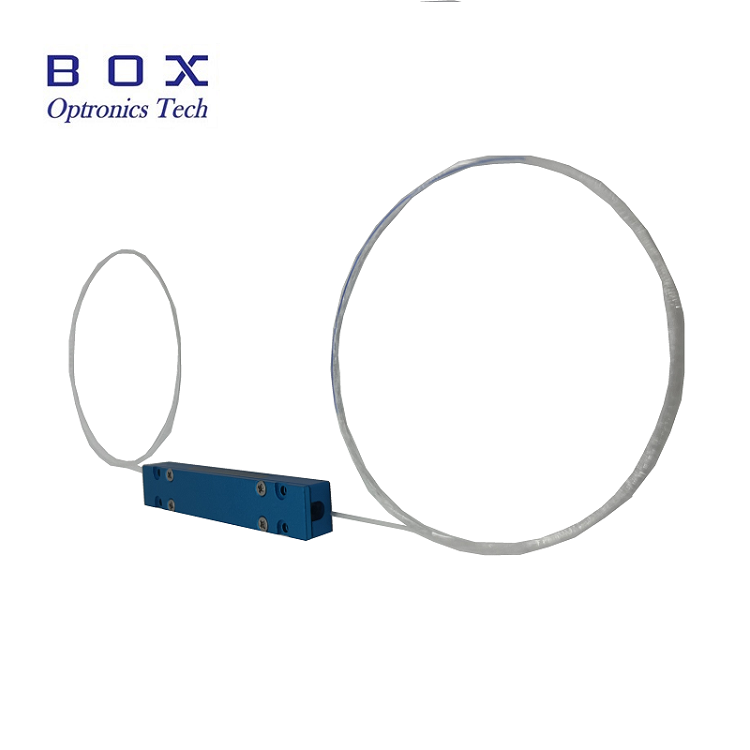

The 1064nm (2+1) x1 Multimode Pump and Signal Combiner is designed for high power applications. It features exceptional optical characteristics. These devices can combine 2 pump lasers and 1 signal channel into one fiber and create a high power pump laser source, delivering the combined power for applications in industrial, military, medical and telecommunications markets.
The 1064nm (2+1) x1 Multimode Pump and Signal Combiner is designed for high power applications. It features exceptional optical characteristics. These devices can combine 2 pump lasers and 1 signal channel into one fiber and create a high power pump laser source, delivering the combined power for applications in industrial, military, medical and telecommunications markets.
High transfer efficiency;
Air-Clad technology for robust power delivery;
Stable and reliable;
Custom configurations available.
High power fiber laser;
Fiber amplifier.
| Parameter | Unit | Value |
| Port configuration | - | (2+1)x1 |
| Pump wavelength | nm | 800~1000 |
| Signal wavelength | nm | 1030~1080 |
| Signal input fiber | - | PLMA-GDF-10/125 |
| Pump fiber | - | 105/125/0.22NA |
| Signal output fiber | - | PLMA-GDF-10/125 |
| Pump efficiency | % | >90 |
| Signal insertion loss | dB | <0.5 |
| Total handling power | W | 50 |
| Polarization extinction ratio | dB | ≥18(PM Fiber Type) |
| Return loss | dB | >45 |
| Operating temperature | ℃ | -0~+70 |
| Storage temperature | ℃ | -40~+85 |
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: Box optronics can provide 1064nm 1550nm signal input pump combiner
Q: What is the optical connector you requirement?A: Box optronics can customize the optical connector according the requirement for free.
