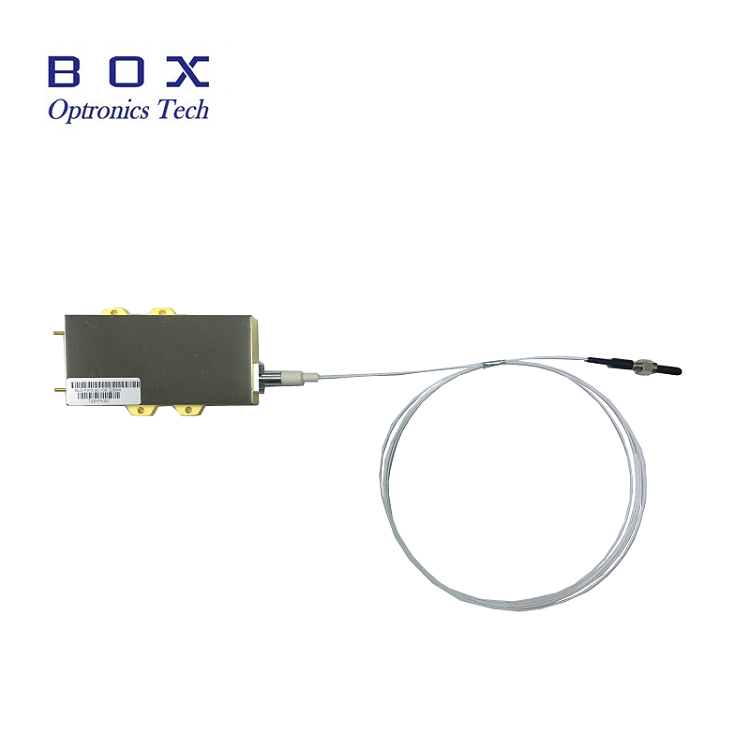

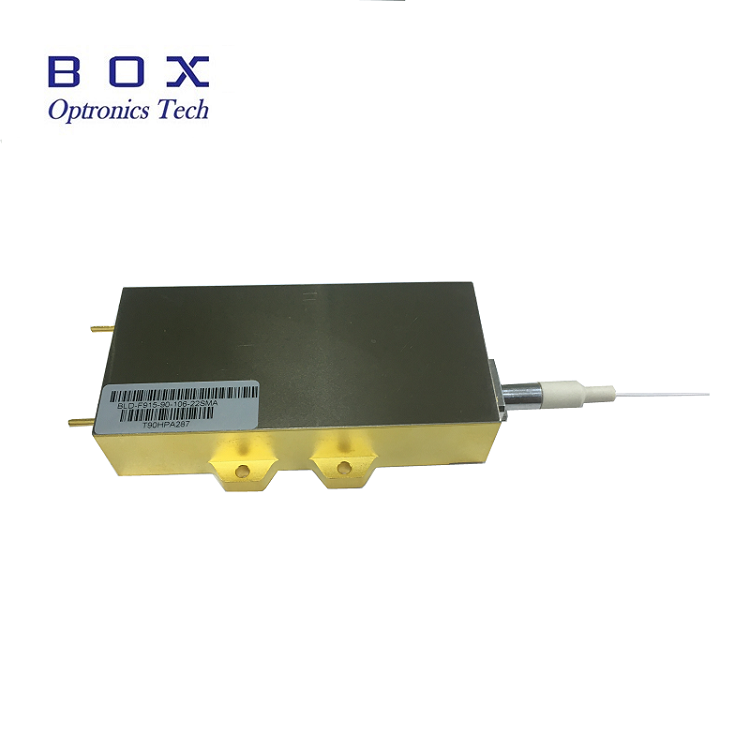

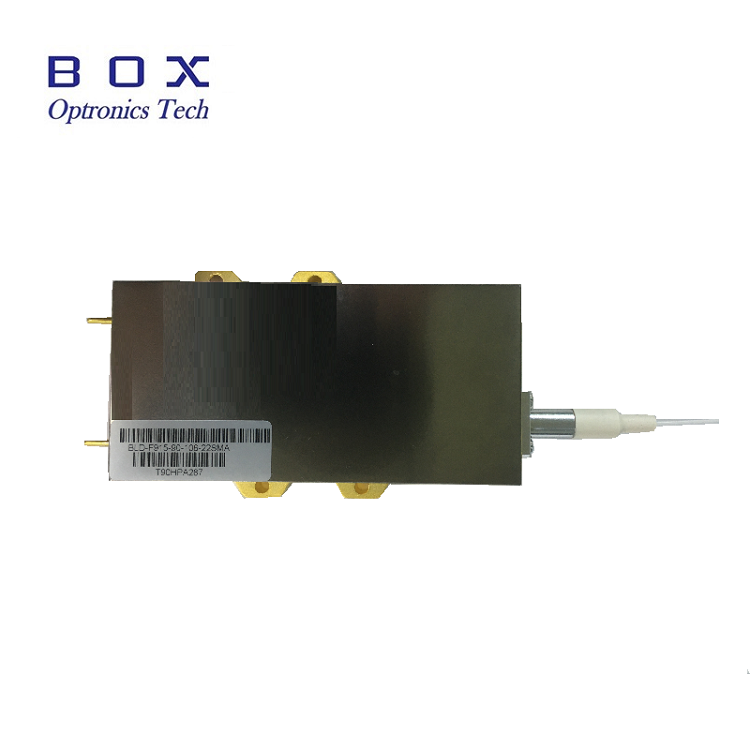

1064nm 100W Fiber Coupled Laser Module

The 1064nm 100W Fiber Coupled Laser Module is a high output power of 100 watts, and center wavelength of 1064nm. This laser manufactured by using specialized fiber-coupling techniques to couple the high power light from a multi-single laser emitter design into a 106 micrometer core fiber. This laser offer a high efficiency and high stability beam and a long mean time to failure.

Send Inquiry

Product Description

1. Summary of 1064nm 100W Fiber Coupled Laser Module

The 1064nm 100W Fiber Coupled Laser Module is a high output power of 100 watts, and center wavelength of 1064nm. This laser manufactured by using specialized fiber-coupling techniques to couple the high power light from a multi-single laser emitter design into a 106 micrometer core fiber. This laser offer a high efficiency and high stability beam and a long mean time to failure.

2. Introduction of 1064nm 100W Fiber Coupled Laser Module

3. Features of 1064nm 100W Fiber Coupled Laser Module

1064nm wavelength;

100W output power;

106.5μm 0.22NA Fiber;

High brightness;

RoHS Compliance.

4. Application of 1064nm 100W Fiber Coupled Laser Module

Medical care;

Pump source;

Illumination;

Material processing.

5. Electro-Optical Characteristics(T=25℃) of 1064nm 100W Fiber Coupled Laser Module

Parameter	Symbol	Min.	Typ.	Max.	Unit
Operating output power	Pout	-	100	-	W
Range of available wavelength	λ	1054	1064	1074	nm
Spectral width @ FWHM	Δλ	-	4.5	-	nm
Threshold current	Ith	-	0.7	-	A
Operating current at Pout	IOP	-	-	12.0	A
Operating voltage at Pout	VOP	-	21.5	-	V
Power conversion efficiency	-	-	45	-	%
Wavelength temperature coefficient	Δλ/ΔT	-	0.3	-	nm/℃
Slope efficiency	η	-	10.0	-	W/A
Fiber bend radius	r	37.5	-	-	mm
Fiber core/cladding diameter	DCOR	105	106.5	108	µm
Fiber buffer diameter	DBUF	-	250	-	µm
Fiber numerical aperture	NA	-	0.22	-	-
Beam numerical aperture(90% power)	NA	-	0.18	-	-
Fiber length	Lf	-	1.5	-	m
Connector type	-	Null or SMA905			-

6. Package drawing&PIN-OUT Definition(Unit:mm) of 1064nm 100W Fiber Coupled Laser Module

7. Deliver,Shipping And Serving of 1064nm 100W Fiber Coupled Laser Module

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

8. FAQ

Q: What is the wavelength you need?

A: We have 793nm 808nm 915nm 975nm laser diode.

Q: What is the requirement for the output power?

A: Box optronics can customize according to your requirements.
