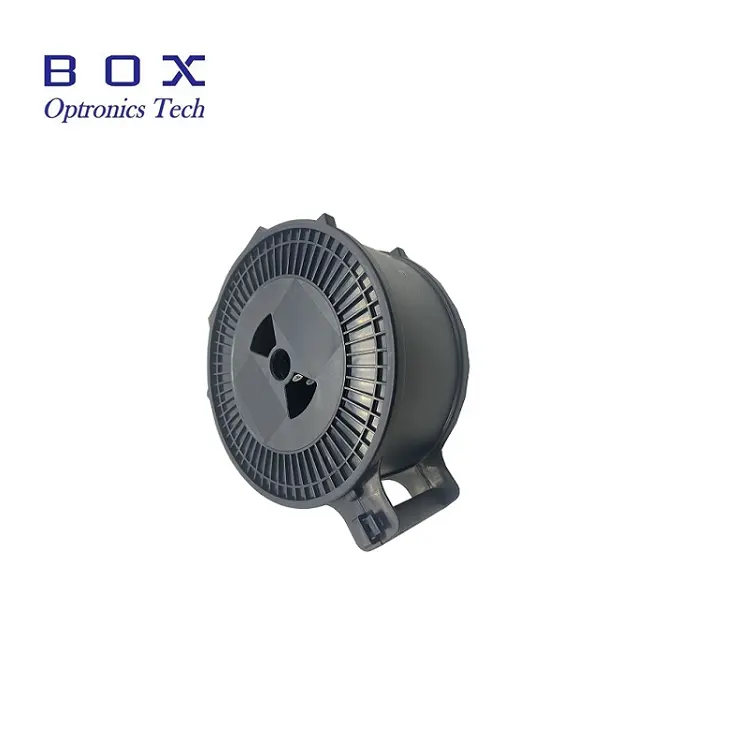

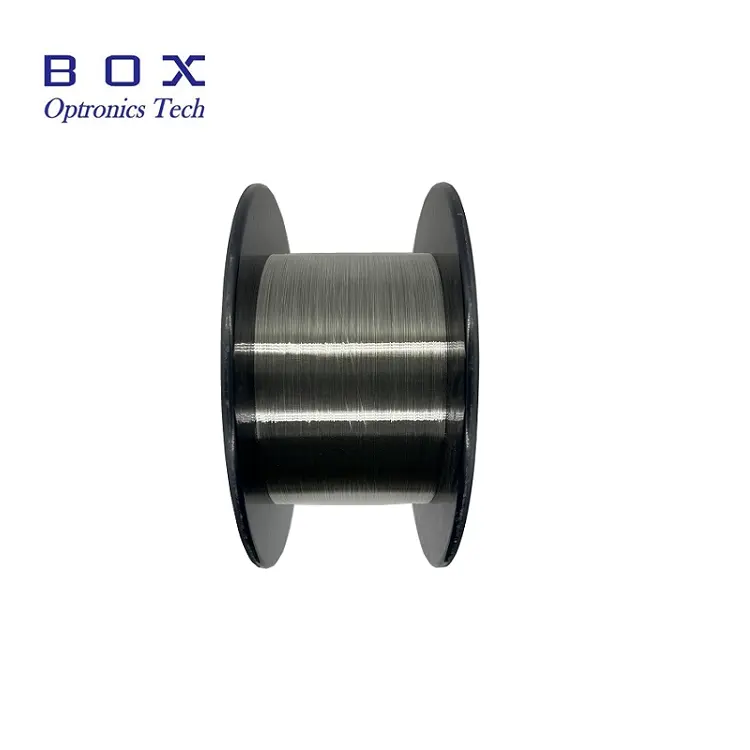

The Panda PM Double Clad Thulium Doped Fiber is an eye-safe, high-power, narrow-linewidth 2μm fiber amplifier design. By optimizing Tm ion doping, it exhibits high slope efficiency, high absorption coefficient, and high polarization extinction ratio when pumped at a 793nm wavelength.
The Panda PM Double Clad Thulium Doped Fiber is an eye-safe, high-power, narrow-linewidth 2μm fiber amplifier design. By optimizing Tm ion doping, it exhibits high slope efficiency, high absorption coefficient, and high polarization extinction ratio when pumped at a 793nm wavelength.
High slope efficiency;
high polarization extinction ratio.
Eye-safe (2μm) fiber laser;
2μm fiber amplifiers.
| Part No.: | BTDF-10/130-PM | |
| OpticalSpecifications | Operating wavelength | 1600-2100nm |
| Core Numerical Aperture | 0.14±0.01 | |
| Cladding Numerical Aperture | ≥ 0.46 | |
| Core absorption @793nm | 3.2 ± 0.2dB/m | |
| Core attenuation@860nm | ≤15.0dB/km | |
| Birefringence | 2.5±0.5 X10-4 | |
|
Dimensions and Mechanical Specifications |
Core diameter | 10.0 ± 1.0μm |
| Cladding diameter | 130.0 ±3.0μm | |
| Cladding shape | Round, Panda | |
| Coating diameter | 245.0 ± 15.0μm | |
| Coating material | Lowrefractive index coating | |
| Matrix material | Quartz | |
| Mechanical strength | ≥100kpsi | |
