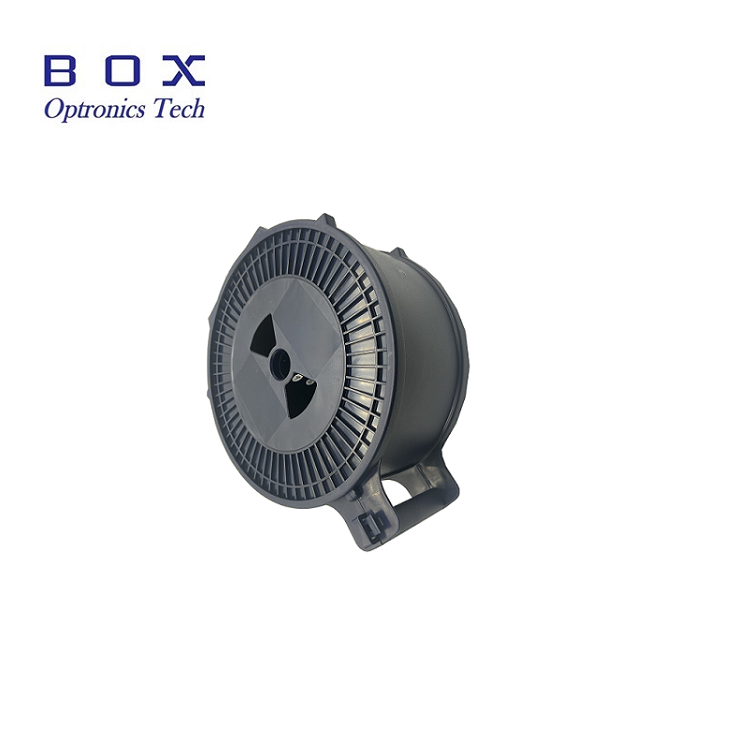

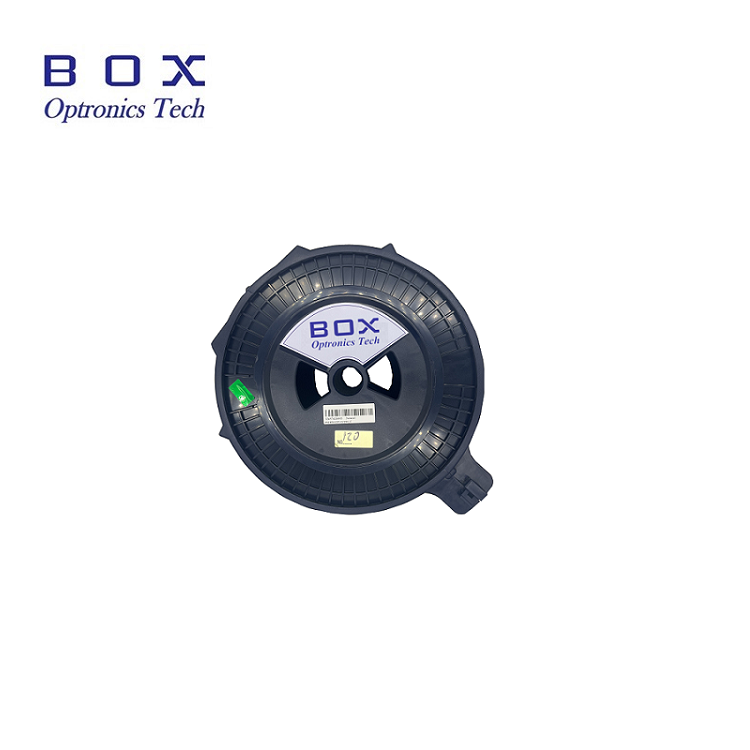

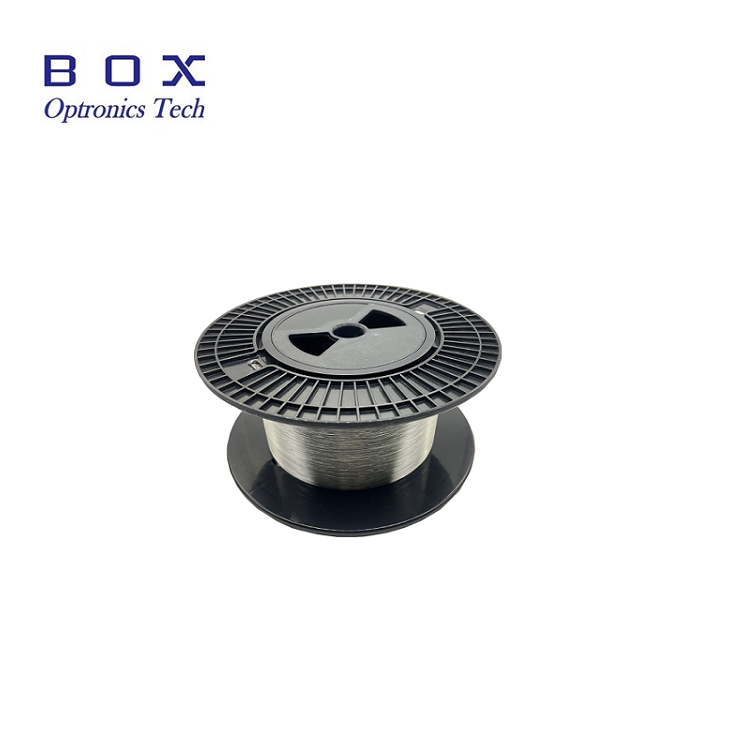

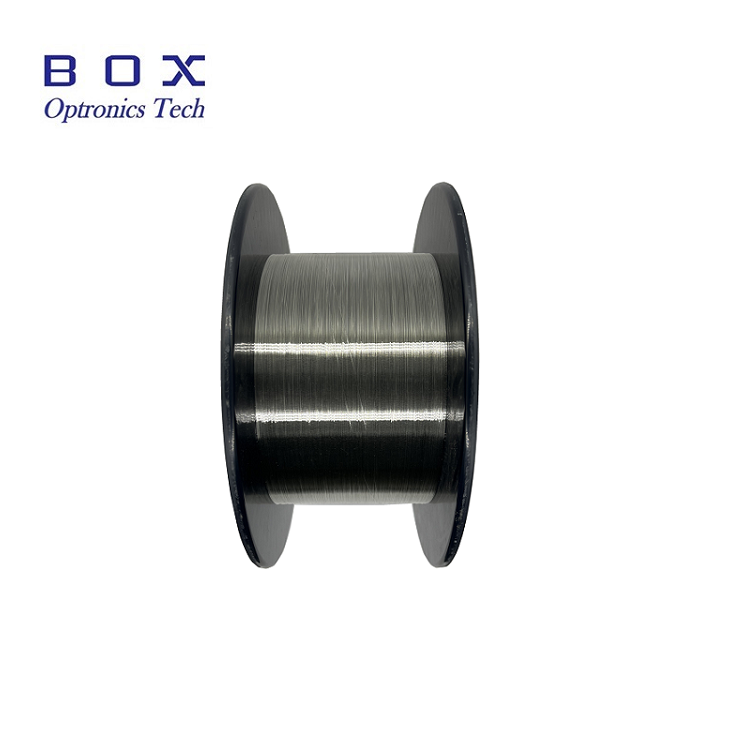

High absorption Erbium-doped Fiber

The High absorption Erbium-doped fiber can reduce the length of the fiber used, thereby reducing the nonlinear effect of the fiber, and is mainly used in 1.5μm fiber amplifiers and fiber lasers. The fiber is pumped at 980 nm or 1480 nm and has low splice loss and good consistency.

Send Inquiry

Product Description

1. Introduction of High absorption Erbium-doped Fiber

The High absorption Erbium-doped Fiber can reduce the length of the fiber used, thereby reducing the nonlinear effect of the fiber, and is mainly used in 1.5μm fiber amplifiers and fiber lasers. The fiber is pumped at 980 nm or 1480 nm and has low splice loss and good consistency.

2. Feature of High absorption Erbium-doped Fiber

High consistency and stable performance;

High doping concentration reduces nonlinear effects.

3. Application of High absorption Erbium-doped Fiber

Fiber optical laser

4. Typical Specifications of High absorption Erbium-doped Fiber

Part No: BEDF-M-50 BEDF-M-80 BEDF-M-150
Core Numerical Aperture 0.26±0.02 0.26±0.02 0.26±0.02
Background loss@1200nm ≤15.0 dB/km ≤15.0 dB/km ≤15.0 dB/km
Core absorption@1530nm 50.0±10.0 dB/m 80.0±20.0 dB/m 150.0±30.0 dB/m
Mode Field Diameter@1550nm 5.0±0.7μm 5.0±0.7μm 5.0±0.7μm
Cut-off wavelength <1300nm <1300nm <1500nm
Cladding diameter 125.0±1.0μm 125.0±1.0μm 125.0±1.0μm
Coating diameter 245.0±5.0μm 245.0±5.0μm 245.0±5.0μm
Core concentricity ≤0.3μm ≤0.3μm ≤0.3μm
Mechanical strength ≥100kpsi(0.69GN/m2) ≥100kpsi(0.69GN/m2) ≥100kpsi(0.69GN/m2)
Cladding shape Round Round Round
Matrix material Quartz Quartz Quartz

5. Deliver,Shipping And Serving of High absorption Erbium-doped Fiber

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

6. FAQ

Q: what is the wavelength you need?

A: C-band, L band, and C+L band wavelengths.

Q: What is the requirement for the output power?

A: Box optronics can customize according to your requirements.
