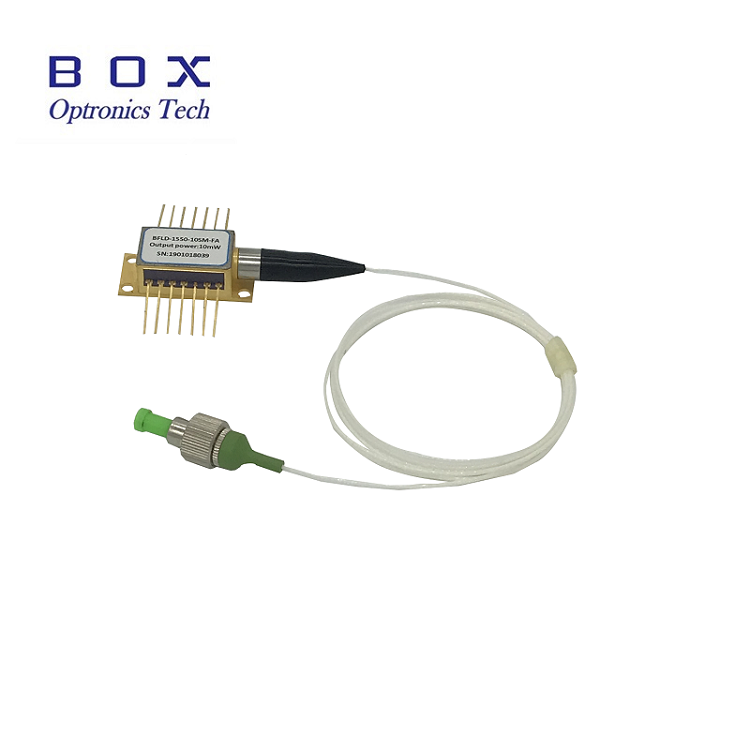

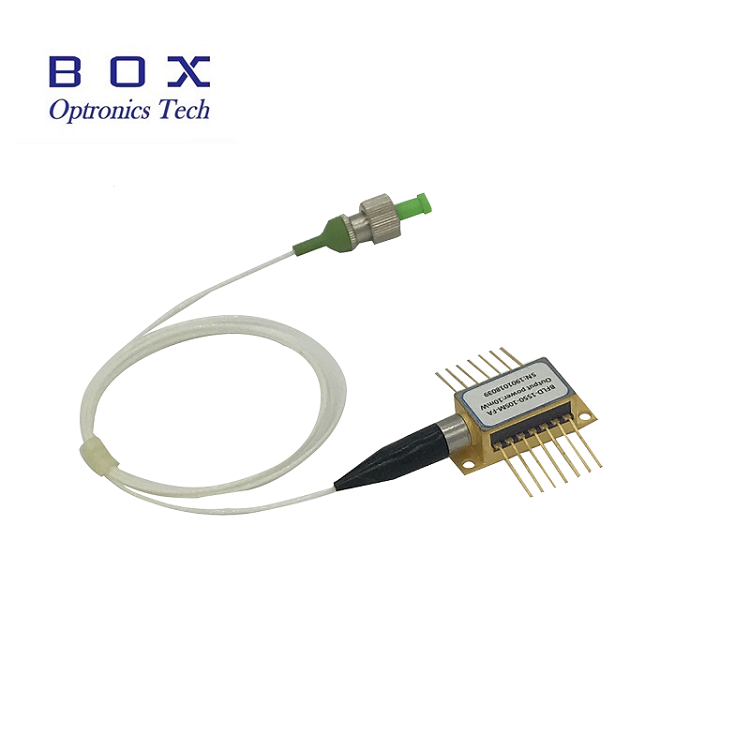

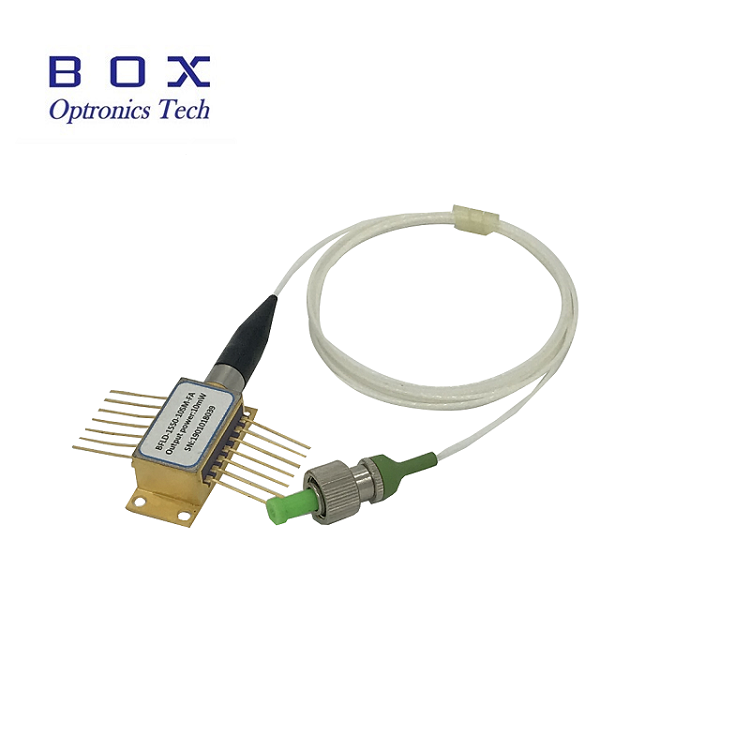

The DWDM DFB Butterfly analog Laser Diode For CATV Application is a Dense Wavelength-Division Multiplexing (DWDM) laser for analog applications. It features a distributed feedback chip that has been designed specifically for Radio Frequency (RF) applications. The DWDM DFB Butterfly analog Laser Diode has a wide temperature range for reliable performance in harsh node environments and narrow transmitter designs. It also features low adiabatic chirp to maximize signal quality in short and long lengths of fiber. The laser’s excellent inherent linearity minimizes degradation of the broadcast signals caused by quadrature amplitude modulated (QAM) channels. The versatile DWDM DFB Butterfly analog Laser Diode reduces cable network architecture fiber needs and lessens equipment requirements in the hub.
The DWDM DFB Butterfly analog Laser Diode is a Dense Wavelength-Division Multiplexing (DWDM) laser for analog applications. It features a distributed feedback chip that has been designed specifically for Radio Frequency (RF) applications. The DWDM DFB Butterfly analog Laser Diode has a wide temperature range for reliable performance in harsh node environments and narrow transmitter designs. It also features low adiabatic chirp to maximize signal quality in short and long lengths of fiber. The laser’s excellent inherent linearity minimizes degradation of the broadcast signals caused by quadrature amplitude modulated (QAM) channels. The versatile DWDM DFB Butterfly analog Laser Diode reduces cable network architecture fiber needs and lessens equipment requirements in the hub.
The DWDM DFB Butterfly analog Laser Diode is a Dense Wavelength-Division Multiplexing (DWDM) laser for analog applications. It features a distributed feedback chip that has been designed specifically for Radio Frequency (RF) applications. The DWDM DFB Butterfly analog Laser Diode has a wide temperature range for reliable performance in harsh node environments and narrow transmitter designs. It also features low adiabatic chirp to maximize signal quality in short and long lengths of fiber. The laser’s excellent inherent linearity minimizes degradation of the broadcast signals caused by quadrature amplitude modulated (QAM) channels. The versatile DWDM DFB Butterfly analog Laser Diode reduces cable network architecture fiber needs and lessens equipment requirements in the hub.
Standard ITU Grid wavelengths;
Advanced analog chip design;
Reduced equipment requirements in the Hub;
Wide temperature range.
CATV Broadcast networks;
Networks with limited fiber.
Parameter | Symbol | Condition | Min. | Max. | Unit |
Laser forward DC current | - | 60 seconds | - | 150 | mA |
Average RF input power | - | dBmV | - | 62 | dBmV |
PD Reverse voltage | VRPD | CW | - | 10 | V |
LD Reverse voltage | VRLD | CW | - | 1 | V |
ESD | - | HBM: R=1500Ohm, C=100pF | -500 | 500 | V |
TEC Current | ITEC | CW | -1.5 | 1.5 | A |
Operating temperature | TOP | Case temperature | -40 | +85 | ℃ |
Storage temperature | TSTG | Ambient temperature | -40 | +85 | ℃ |
Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit |
Center Wavelength | λc | ITU Grid | - | See ITU Grid Channel Numbering | - | nm |
Optical Output Power | Pf | - | 6 | - | 20 | mW |
Threshold Current | ITH | 25℃ | - | - | 20 | mA |
Operating current | Iop | - | - | - | 120 | mA |
Operating voltage | VOP | 25℃ | - | - | 2.5 | V |
Side-mode Suppression Ratio | SMSR | - | 30 | - | - | dB |
Optical return loss | LW | ORL | 40 | - | - | dB |
Optical Isolation | ISO | 25℃ | 30 | - | - | dB |
MPD Dark current | ID | IOP =0mA, VRM=5V | - | - | 0.2 | μA |
MPD Current relative to output power | - | VRM=5V | 10 | - | 200 | mA/W |
TEC Voltage | VTEC | - | -2.5 | - | 3.8 | V |
Thermistor resistance | RTH | 25℃ | 9.5 | 10 | 10.5 | kΩ |
Thermistor B-value | β | 25℃/80℃ | - | 3950 | - | K |
Carrier-to-Noise ratio | CNR | - | 55 | - | - | dB |
Composite second-order | CSO | - | - | - | -55 | dBm |
Composite triple beat | - | - | - | - | -66 | dBc |
Channel | Wavelength(nm) | Channel | Wavelength(nm) | Channel | Wavelength(nm) |
64 | 1526.44 | 47 | 1539.77 | 30 | 1553.33 |
63 | 1527.22 | 46 | 1540.56 | 29 | 1554.13 |
62 | 1527.99 | 45 | 1541.35 | 28 | 1554.94 |
61 | 1528.77 | 44 | 1542.14 | 27 | 1555.75 |
60 | 1529.55 | 43 | 1542.94 | 26 | 1556.56 |
59 | 1530.33 | 42 | 1543.73 | 25 | 1557.36 |
58 | 1531.12 | 41 | 1544.53 | 24 | 1557.17 |
57 | 1531.90 | 40 | 1545.32 | 23 | 1558.98 |
56 | 1532.68 | 39 | 1546.12 | 22 | 1559.79 |
55 | 1533.47 | 38 | 1546.92 | 21 | 1560.61 |
54 | 1534.25 | 37 | 1547.72 | 20 | 1561.42 |
53 | 1535.04 | 36 | 1548.51 | 19 | 1562.23 |
52 | 1535.82 | 35 | 1549.32 | 18 | 1563.05 |
51 | 1536.61 | 34 | 1550.12 | - | - |
50 | 1537.40 | 33 | 1550.92 | - | - |
49 | 1538.19 | 32 | 1551.72 | - | - |
48 | 1538.98 | 31 | 1552.52 | - | - |
All products have been tested before shipping out;
All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)
We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);
If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;
If the items are defective, please notify us within 3 days of delivery;
Any items must be returned in their original condition to qualify for a refund or replacement;
The buyer is responsible for all the shipping cost incurred.
A: Box optronics can provide many wavelengths corresponding to a variety of gas detection applications.
Q: What is the optical connector you requirement?A: Box optronics can customize the optical connector according the requirement for free.
