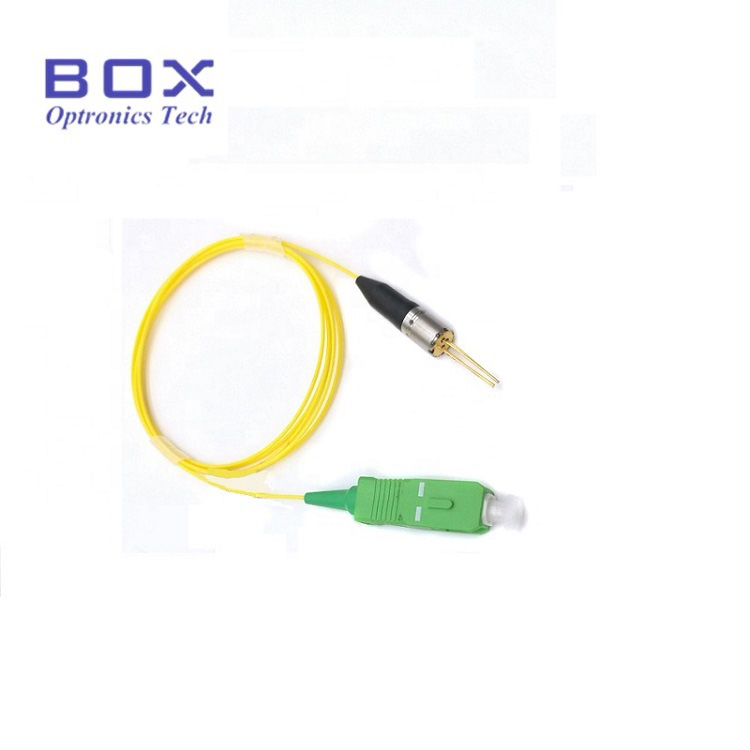

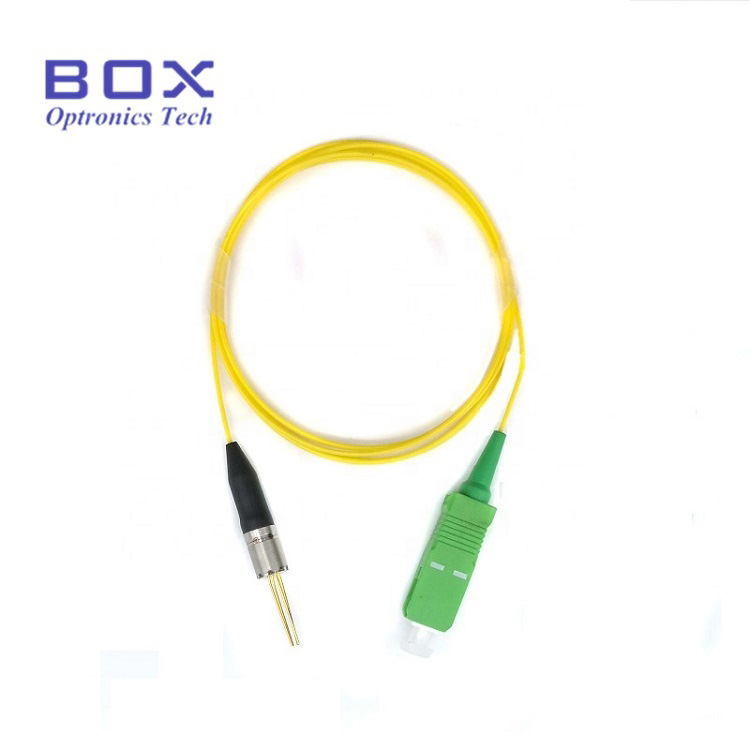

1570nm Coaxial DFB Laser Diode is fibre coupled with single mode optical fibre. CW output powers are wavelength dependent and lie between 2mW and 4mW. The distributed feedback cavity produces a linewidth of just 0.32nm, these laser diodes have a built in monitor photodiode and optical isolator. The SMF 28 optical output fibre can be terminated with SC/PC, FC/PC, SC/APC, or FC/APC connectors.

Send Inquiry

Product Description

1. Summary of 1570nm Coaxial DFB Laser Diode

1570nm Coaxial DFB Laser Diode is fibre coupled with single mode optical fibre. CW output powers are wavelength dependent and lie between 2mW and 4mW. The distributed feedback cavity produces a linewidth of just 0.32nm, these laser diodes have a built in monitor photodiode and optical isolator. The SMF 28 optical output fibre can be terminated with SC/PC, FC/PC, SC/APC, or FC/APC connectors.

2. Introduction of 1570nm Coaxial DFB Laser Diode

1570nm Coaxial DFB Laser Diode is fibre coupled with single mode optical fibre. CW output powers are wavelength dependent and lie between 2mW and 4mW. The distributed feedback cavity produces a linewidth of just 0.32nm, these laser diodes have a built in monitor photodiode and optical isolator. The SMF 28 optical output fibre can be terminated with SC/PC, FC/PC, SC/APC, or FC/APC connectors.

3. Features of 1570nm Coaxial DFB Laser Diode

DFB wavelength stabilized single mode laser;

1570nm wavelength;

>2mW output power;

CW or pulsed operation;

Wavelength/temperature coefficient 0.1nm/℃;

Built-in monitor photodiode.

4. Application of 1570nm Coaxial DFB Laser Diode

CDMA/GSM transmission system;

WDM system;

Telecommunication;

Other analog transmission system.

5. Electro-Optical Characteristics(T=25℃) of 1570nm Coaxial DFB Laser Diode

Parameter Symbol Condition Min. Typ. Max. Unit
Center wavelength λC PO= PF 1560 1570 1580 nm
Optical output power PF IF=ITH+20mA 2 - - mW
Threshold current ITH   4   10 mA
Operating voltage VF - - 1.2 1.5 pF
Rise time/Fall time TR/TF IF=ITH,PO=PF(20-80)% - - 0.4 ns
Monitor current IM PO= PF 0.1 - 1 mA
Capacitance C - - 10 15 PF
Spectral width(-20dB) Δλ IF=ITH+20mA   1.6 2.5 nm
Tracking error TE - -1.0 - 1.0 dB
Optical isolation ISO - 30 - - dB
2Sec order inter-modulation distortion IMD2 - - - -50 dBc
3rd order inter-modulation distortion IMD3 - - - -60 dBc
Relative intensity noise RIN - - - -145 dB/Hz
Side mode suppression ration SMSR PO = 2mW 40 - - dB

6. Package drawing&PIN-OUT Definition(Unit:mm) of 1570nm Coaxial DFB Laser Diode
