1064nm Single Mode Fiber Coupled DFB Laser Diode

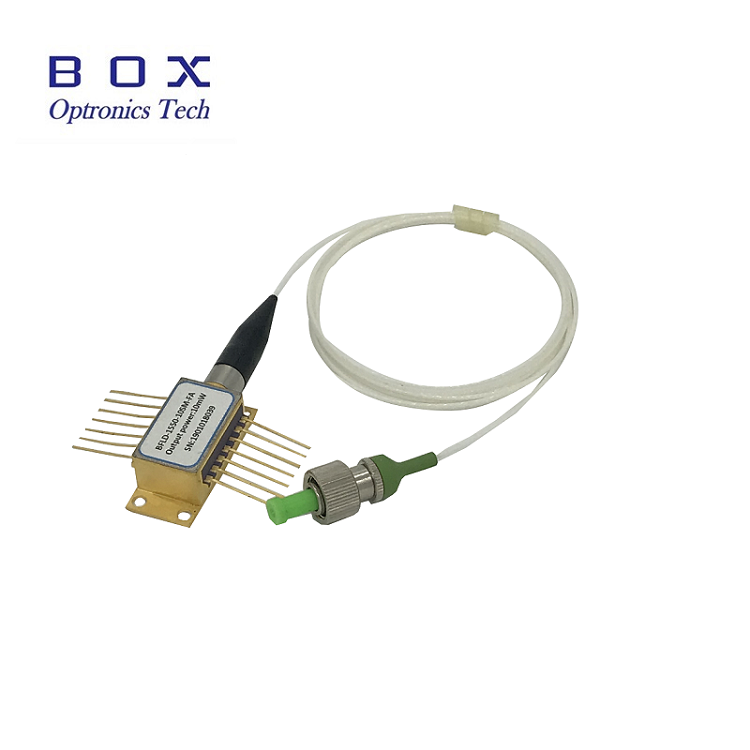

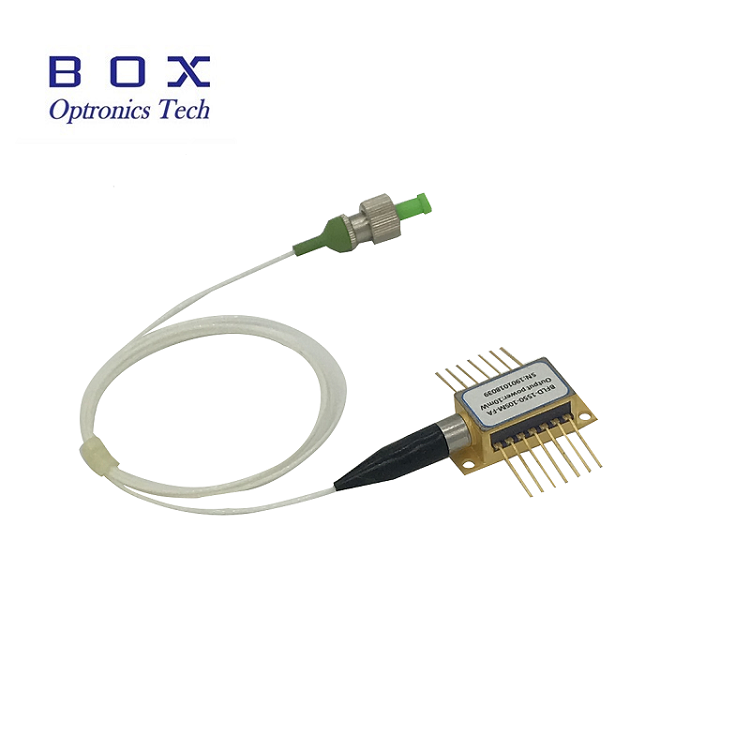

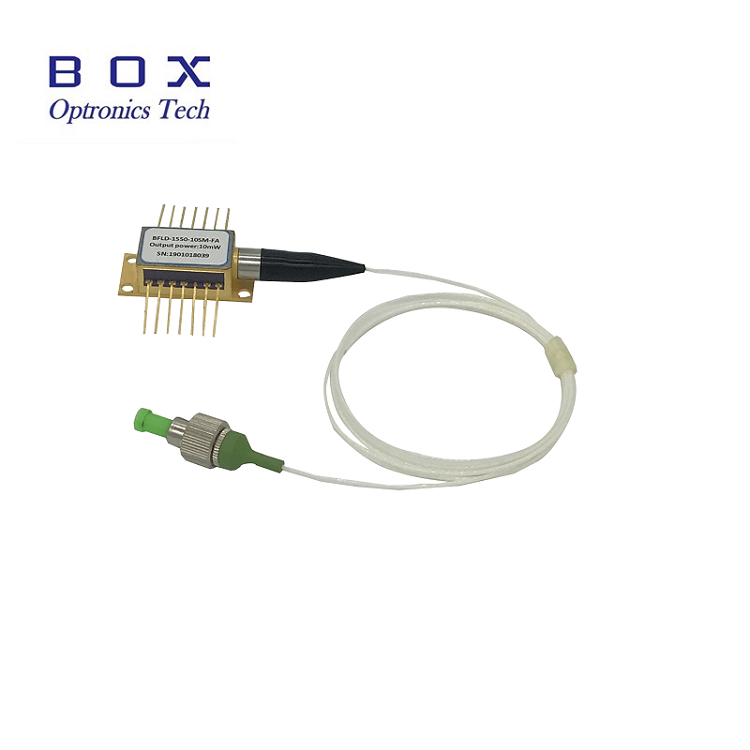

The 1064nm Single Mode Fiber Coupled DFB Laser Diode utilizes a planar construction with chip on subcarrier. The high power chip is hermetically sealed in a epoxy-free and flux-free 14-pin butterfly package and fitted with a thermistor, thermoelectric cooler, and monitor diode. This 1064nm DFB laser diode provides a noise-free narrowband spectrum, even under changes in temperature, drive current, and optical feedback. Wavelength selection is available for applications that require the highest performance in spectrum control with the highest available powers.

Model:BFLD-1064-20SM-FA

Send Inquiry

Product Description

1. Summary of 1064nm Single Mode Fiber Coupled DFB Laser Diode

The 1064nm Single Mode Fiber Coupled DFB Laser Diode utilizes a planar construction with chip on subcarrier. The high power chip is hermetically sealed in a epoxy-free and flux-free 14-pin butterfly package and fitted with a thermistor, thermoelectric cooler, and monitor diode. This 1064nm DFB laser diode provides a noise-free narrowband spectrum, even under changes in temperature, drive current, and optical feedback. Wavelength selection is available for applications that require the highest performance in spectrum control with the highest available powers.

2. Introduction of 1064nm Single Mode Fiber Coupled DFB Laser Diode

The 1064nm Single Mode Fiber Coupled DFB Laser Diode utilizes a planar construction with chip on subcarrier. The high power chip is hermetically sealed in a epoxy-free and flux-free 14-pin butterfly package and fitted with a thermistor, thermoelectric cooler, and monitor diode. This 1064nm DFB laser diode provides a noise-free narrowband spectrum, even under changes in temperature, drive current, and optical feedback. Wavelength selection is available for applications that require the highest performance in spectrum control with the highest available powers.

3. Features of 1064nm Single Mode Fiber Coupled DFB Laser Diode

Wavelength 1064nm;

Output power 20mW 30mW;

Stabilized wavelength single mode laser;

CW or pulsed operation;

Optional FC/APC connector.

4. Application of 1064nm Single Mode Fiber Coupled DFB Laser Diode

Spectroscopy;

telecommunication;

Illumination;

Sensing.

5. Electro-Optical Characteristics(T=25℃) of 1064nm Single Mode Fiber Coupled DFB Laser Diode

Parameter Symbol Min. Typ. Max. Unit
Output power from pigtail Pf 20 30 - mW
Range of available wavelengths lC 1061 - 1065 nm
Spectral width (FWHM) - - - 3 MHz
Sidemode supression ratio at Pf SMSR 40 45 - dB
Wavelength shift with current - - 3 5 pm/mA
Wavelength shift with temperature - - 0.08 0.1 nm/℃
Operating current IOP - 100 150 mA
Threshold current Ith - 22 30 mA
Forward voltage Vf - 2 2.3 V
Polarization extinction ratio PER 15 20 - dB
Thermoelectric cooler current ITEC - - 3 A
Thermoelectric cooler voltage VTEC - - 4 V
Chip operating temperature range TOP 15 25 40
Case operating temperature range TC 10 15 50
Storage temperature TS 5 - 80

6. Package drawing&PIN-OUT Definition(Unit:mm) of 1064nm Single Mode Fiber Coupled DFB Laser Diode

  • PIN
    DESIGNATIONS
    PIN
    DESIGNATIONS
    1 TEC(+)
    14 TEC(-)
    2 Thermistor
    13 Case Ground
    3 PD Anode
    12 NC
    4 PD Cathode
    11 LD Cathode
    5 Thermistor
    10 LD Anode
    6 NC 9 NC
    7 NC 8 NC

7. Deliver,Shipping And Serving of 1064nm Single Mode Fiber Coupled DFB Laser Diode

All products have been tested before shipping out;

All products have 1-3 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

8. FAQ

Q: what is the applications and wavelength accuracy?

A: Box optronics can provide CWDM and DWDM wavelength for choice.

Q: What is the optical connector you requirement?

A: Box optronics can customize the optical connector according the requirement for free.
