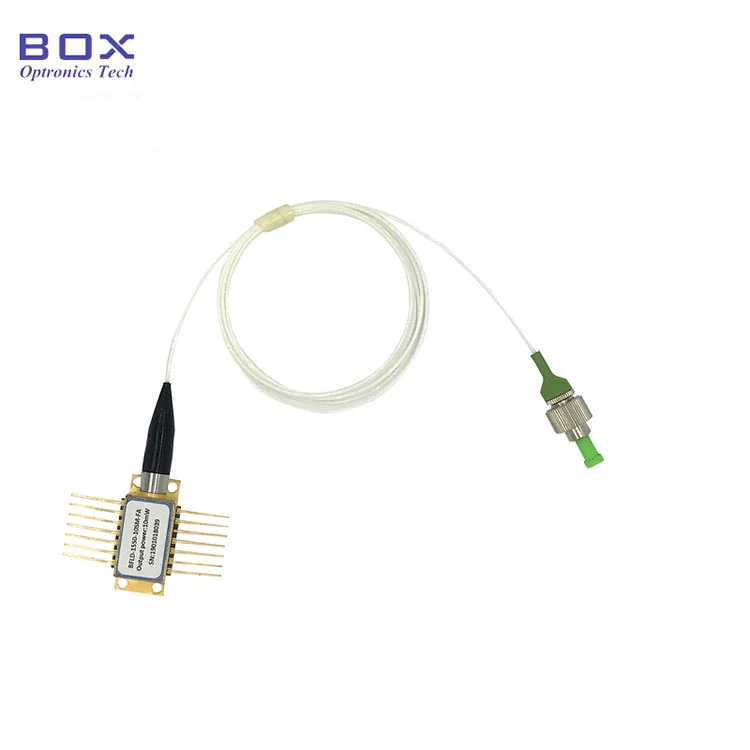

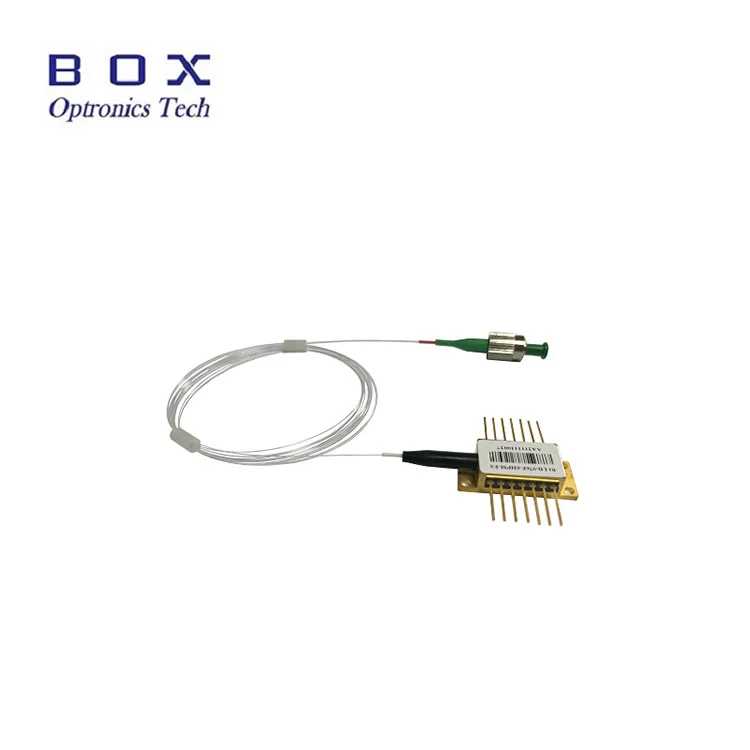

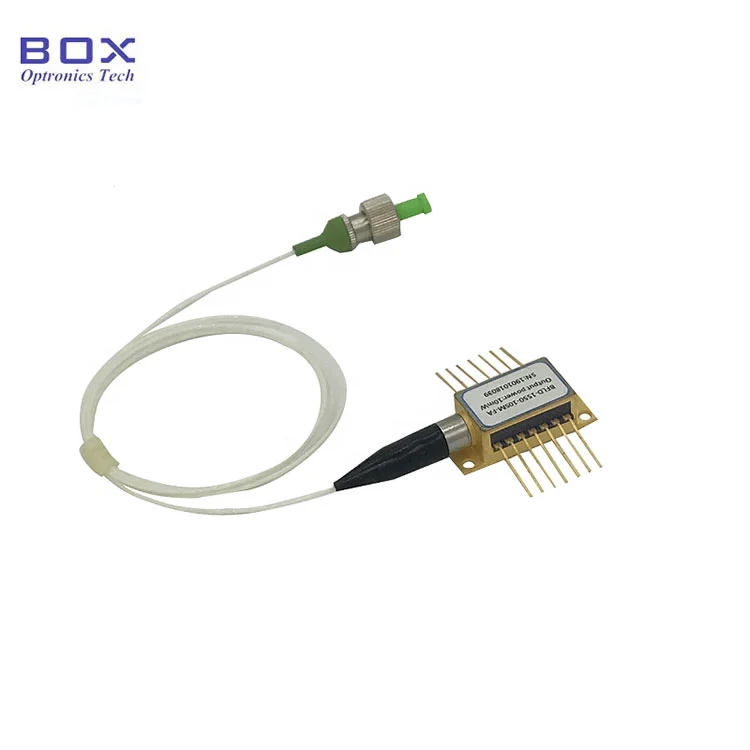

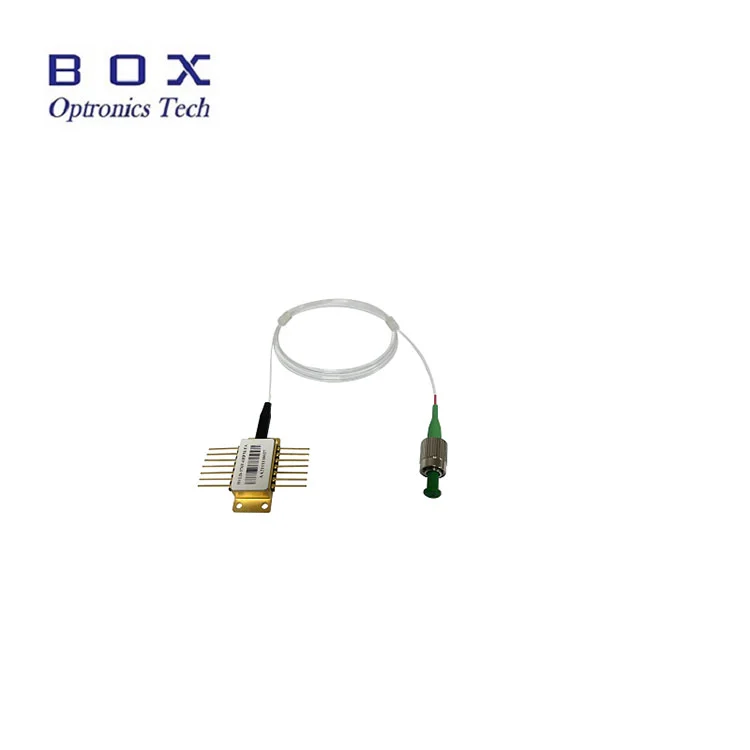

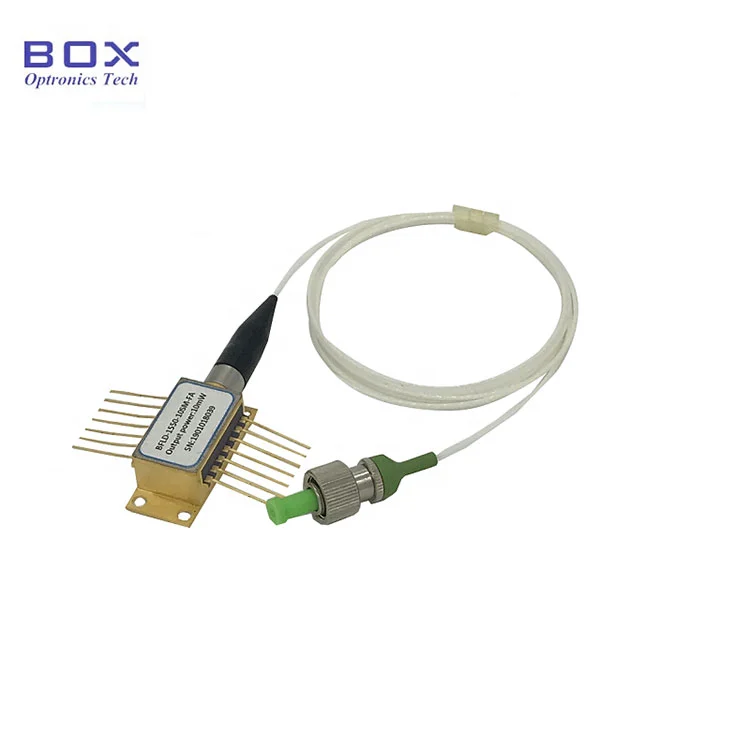

1064nm Infrared 200mW DFB fiber coupled laser diode

Box Optronics provides 1064nm infrared DFB laser diode in a 14PIN BTF package. These devices offer up to 200mW of very stable CW performance. SM fiber and PM fiber pigtail are optional. They have built-in TEC coolers and monitor PDs. Side-mode suppression ratio is >40dB. They're frequently used in optical sensing and as a seed source for lasers.

Feature

● 200mW High output power;
● Field-proven high reliability;
● Hi1060 SM or PM980-HP fiber pigtail;
● 14PIN Butterfly package;
● Internal thermoelectric heatpump and monitor photodiode;
● Reliability: Telcordia GR-468. RoHS

Application

● Seed source for lasers;
● Spectroscopy;
● Optical sensing.

Electro-Optical Characteristics(T=25℃)

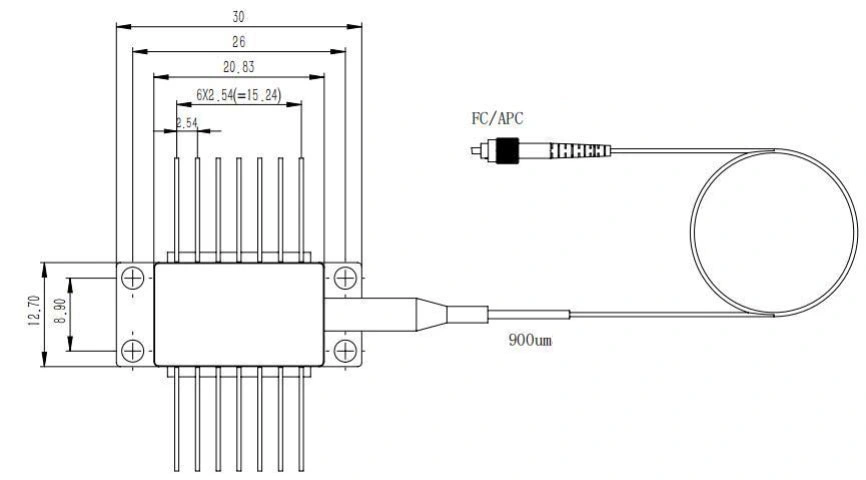

Package drawing&PIN-OUT Definition(Unit:mm):

Deliver,Shipping And Serving

All products have been tested before shipping out;

All products have 1 years warranty.(After the quality guarantee period began to charge appropriate maintenance service fee.)

We appreciate your business and offer an instant 7 days return policy. (7 days after receiving the items);

If the items you purchase from our store are not of perfected quality, that is they don‘t work electronically to manufacturers specifications, simply return them to us for replacement or refund;

If the items are defective, please notify us within 3 days of delivery;

Any items must be returned in their original condition to qualify for a refund or replacement;

The buyer is responsible for all the shipping cost incurred.

FAQ

Q: What pigtail fiber can you provide?

A: SM: Hi 1060 and PM: PM980. If other fibers are needed, please check with us.

Q: I don't want a 14PIN package.

A: 10PIN is customizable.
